I opened a case with Apple on this a couple months back. Unfortunately we ran into the same issue as what you are seeing. Below is a suggestion they came back with that we have not tried or tested as of yet.

You’re right that the -addpreferredwirelessnetworkatindex flag only works when adding new SSIDs, not rearranging existing ones.

As for suggestions, I have a few. The SSID name format you’re seeing in the PreferredOrder array is actually the name of the Wi-Fi network converted from ASCII to hexadecimal. There’s two quick ways to turn that into something human readable. First way,
find the “KnowNetworks” key, which contains a dictionary of the hex SSIDs and their individual settings. Within the individual settings, there’s a key called ‘SSIDString', which contains the plaintext version of the name. Example:


<key>wifi.ssid.<464f4f></key>

<dict>

<key>AutoLogin</key>

<false/>

<key>Captive</key>

<false/>

<key>ChannelHistory</key>

<array/>

<key>Closed</key>

<false/>

<key>CollocatedGroup</key>

<array/>

<key>Disabled</key>

<false/>

<key>Passpoint</key>

<false/>

<key>PossiblyHiddenNetwork</key>

<false/>

<key>RoamingProfileType</key>

<string>None</string>

<key>SPRoaming</key>

<false/>

<key>SSID</key>

<data>

Rk9P

</data>

<key>SSIDString</key>

<string>FOO</string>

<key>SecurityType</key>

<string>WPA Personal</string>

<key>SystemMode</key>

<false/>

<key>TemporarilyDisabled</key>

<false/>

</dict>


As you’ll see, this is for my example FOO network from earlier. Everywhere I see wifi.ssid.<464f4f>, it’s referring to this network.


The other and in my opinion much easier way to do this is to find a nice online hex to ascii converter, and paste in the hex version of the name. Here’s one such site: http://www.unit-conversion.info/texttools/hexadecimal/. You can also work it in the
other direction, entering the ASCII name that you know and converting it to the hex name you should be hunting for.


In theory, you could also do the conversion with the command line tool ‘iconv’, but it requires creating input files containing the data to be converted and was a bit convoluted for my taste. ‘man iconv’ if you want to try it out.


Now, after you know the hex name of the network, you should be able to modify the .plist by hand. Just make sure your network is the first item listed in the PreferredOrder array, and that it only appears once in the list.


In my testing, I found that this method worked to reorder the preferred network list, and that my change survived reboots, toggling of the Wi-Fi interface, and many other attempts to test if the system would revert to the original order. The official answer
is still “make the change in the GUI”, so there’s no guarantee this hand editing method will continue to work with later OS releases. As such, if you plan on using this workaround for now, I highly suggest testing that it continues to work when new beta builds
of the OS are made available.

OK. I found the plist and the array PreferredOrder where i see the hex form of my network name. I'll be using plistbuddy to see if I can re-order the items in PreferredOrder by deleting the existing item I want to move, then inserting it at location 0. I just need to verify that it works.

When modifying plists with plistbuddy, is there a preferred method for making sure changes are properly applied and stick? Any cfprefsd killing, or other things to do before, during, after? Target OS's are 10.9 and 10.10.

Thanks!
Aaron

This is a script I made a few weeks ago, It does remove and re-add the SSID from the preferred network list but I've noticed as long as they are currently connected to that SSID they were never kicked off. However we use Configurations to push our networks out. Is it possible for you to add that certificate to be system-based rather than SSID specific?

If so then this script I made could be used:

https://jamfnation.jamfsoftware.com/discussion.html?id=17858

Heh..delete this one. Double posted....

I've been using a python script made by pudquick on GitHub, linked here

I run this to change the order of preferred networks:

#!/usr/bin/python



# As written, this requires the following:

# - OS X 10.6+ (may not work in 10.10, haven't tested)

# - python 2.6 or 2.7 (for collections.namedtuple usage, should be fine as default python in 10.6 is 2.6)

# - pyObjC (as such, recommended to be used with native OS X python install)



# Only tested and confirmed to work against 10.9.5

# Run with root



import objc, ctypes.util, os.path, collections

from Foundation import NSOrderedSet



preferred_SSID    = 'yourSSIDhere'

next_to_last_SSID = 'yourSSIDhere'

last_SSID         = 'yourSSIDhere'



def load_objc_framework(framework_name):

    # Utility function that loads a Framework bundle and creates a namedtuple where the attributes are the loaded classes from the Framework bundle

    loaded_classes = dict()

    framework_bundle = objc.loadBundle(framework_name, bundle_path=os.path.dirname(ctypes.util.find_library(framework_name)), module_globals=loaded_classes)

    return collections.namedtuple('AttributedFramework', loaded_classes.keys())(**loaded_classes)



# Load the CoreWLAN.framework (10.6+)

CoreWLAN = load_objc_framework('CoreWLAN')



# Load all available wifi interfaces

interfaces = dict()

for i in CoreWLAN.CWInterface.interfaceNames():

    interfaces[i] = CoreWLAN.CWInterface.interfaceWithName_(i)



# Repeat the configuration with every wifi interface

for i in interfaces.keys():

    # Grab a mutable copy of this interface's configuration

    configuration_copy = CoreWLAN.CWMutableConfiguration.alloc().initWithConfiguration_(interfaces[i].configuration())

    # Find all the preferred/remembered network profiles

    profiles = list(configuration_copy.networkProfiles())

    # Grab all the SSIDs, in order

    SSIDs = [x.ssid() for x in profiles]

    # Check to see if our preferred SSID is in the list

    if (preferred_SSID in SSIDs):

        # Apparently it is, so let's adjust the order

        # Profiles with matching SSIDs will move to the front, the rest will remain at the end

        # Order is preserved, example where 'ssid3' is preferred:

        #    Original: [ssid1, ssid2, ssid3, ssid4]

        #   New order: [ssid3, ssid1, ssid2, ssid4]

        profiles.sort(key=lambda x: x.ssid() == preferred_SSID, reverse=True)

        # Now we move next_to_last_SSID to the end

        profiles.sort(key=lambda x: x.ssid() == next_to_last_SSID, reverse=False)

        # Now we move last_SSID to the end (bumping next_to_last_SSID)

        profiles.sort(key=lambda x: x.ssid() == last_SSID, reverse=False)

        # Now we have to update the mutable configuration

        # First convert it back to a NSOrderedSet

        profile_set = NSOrderedSet.orderedSetWithArray_(profiles)

        # Then set/overwrite the configuration copy's networkProfiles

        configuration_copy.setNetworkProfiles_(profile_set)

        # Then update the network interface configuration

        result = interfaces[i].commitConfiguration_authorization_error_(configuration_copy, None, None)

The problem I was having was with our users computers connecting to our guest wifi over our employee wifi, so I also run a script to disable/re-enable wifi so they actually connect to the preferred network right away:

networksetup -setairportpower en0 off

networksetup -setairportpower en0 on

I just add both of these scripts to a single policy and place it in Self Service.

Edit: Added link to source for pudquick's GitHub

@Anthonyr

That script worked perfectly on my 10.10 system. Thanks for sharing!

Edit For those interested I found the link to the script on pudquick's github.

https://gist.github.com/pudquick/fcbdd3924ee230592ab4

Aaron

@FritzsCorner
No problem! It completely solved our issue as well.
Let Forgor(/pudquick) know you owe him a beer in the MacAdmins Slack channel if you're a member.

This is a lifesaver!!!

Thank you - been looking for a way to do this for some time. I added a sleep 5 to the wireless enable/disable as was not always seeing the power get switched back on to the wireless card after it was switched off. Now it works on all our hardware. Many thanks.

THANK YOU!!!!!!!!!!!!!!!!! I WILL BE IMPLEMENTING TOMORROW!!! I have users that have been driving me mad with OS X's Wifi lists. I can't wait to run it.

12/22/15 at 12:54 PM by Anthonyr
Your solution also worked for me!
Thanks!

This thing worked like a champ on 10.12. Thank you so much!!

Legend! Script works perfectly! Thank you!

This is great! Exactly what I needed! Thanks!

I tweaked pudquick's script so that you just have to edit the array of preferred SSIDs rather than modify the code if you have more than 3 in your environment:

#!/usr/bin/python



# As written, this requires the following:

# - OS X 10.6+ (has been reported working through 10.12.3)

# - python 2.6 or 2.7 (for collections.namedtuple usage, should be fine as default python in 10.6 is 2.6)

# - pyObjC (as such, recommended to be used with native OS X python install)



# Run with root



import objc, ctypes.util, os.path, collections

from Foundation import NSOrderedSet



# List of preferred SSIDs in priority order - edit/add/delete as needed

PreferredSSIDs = ["SSID_1", "SSID_2", "SSID_3"]



def load_objc_framework(framework_name):

    # Utility function that loads a Framework bundle and creates a namedtuple where the attributes are the loaded classes from the Framework bundle

    loaded_classes = dict()

    framework_bundle = objc.loadBundle(framework_name, bundle_path=os.path.dirname(ctypes.util.find_library(framework_name)), module_globals=loaded_classes)

    return collections.namedtuple('AttributedFramework', loaded_classes.keys())(**loaded_classes)



# Load the CoreWLAN.framework (10.6+)

CoreWLAN = load_objc_framework('CoreWLAN')



# Load all available wifi interfaces

interfaces = dict()

for i in CoreWLAN.CWInterface.interfaceNames():

    interfaces[i] = CoreWLAN.CWInterface.interfaceWithName_(i)



# Repeat the configuration with every wifi interface

for i in interfaces.keys():

    # Grab a mutable copy of this interface's configuration

    configuration_copy = CoreWLAN.CWMutableConfiguration.alloc().initWithConfiguration_(interfaces[i].configuration())

    # Find all the preferred/remembered network profiles

    profiles = list(configuration_copy.networkProfiles())

    # Grab all the SSIDs, in order

    SSIDs = [x.ssid() for x in profiles]

    # Loop through PreferredSSIDs list in reverse order sorting each entry to the front of profiles array so it

    # ends up sorted with PreferredSSIDs as the first items.

    # Order is preserved for other SSIDs, example where PreferredSSIDs is [ssid3, ssid4]:

    #    Original: [ssid1, ssid2, ssid3, ssid4]

    #   New order: [ssid3, ssid4, ssid1, ssid2]

    for aSSID in reversed(PreferredSSIDs):

        profiles.sort(key=lambda x: x.ssid() == aSSID, reverse=True)

    # Now we have to update the mutable configuration

    # First convert it back to a NSOrderedSet

    profile_set = NSOrderedSet.orderedSetWithArray_(profiles)

    # Then set/overwrite the configuration copy's networkProfiles

    configuration_copy.setNetworkProfiles_(profile_set)

    # Then update the network interface configuration

    result = interfaces[i].commitConfiguration_authorization_error_(configuration_copy, None, None)

This script it great :)

I'd like to be able to set the SSID in JSS. I know that this can be done by using $4, $5, $6 etc but what else is required in the script to get this to work?

# List of preferred SSIDs in priority order - edit/add/delete as needed

PreferredSSIDs = ["$4", "$5", "$6"]

@MatG Sorry, didn't notice your question earlier. The $4, $5, and $6 parameters are directly accessible as variables in a shell bash script, but in Python you access them by using sys.argv[parameter#]. See this post for more info: Adding a Python Script to JSS

This is great! Just tested this and confirmed on a 10.12.5 machine that our school's Wi-Fi network successfully is moved to the top while the rest of the Wi-Fi network order remains the same.

Hi all,

I'm getting this error when its ran on some machines, but not all:

[STEP 1 of 4]

Executing Policy Fix Wi-Fi network order

[STEP 2 of 4]

Running script Set_Wifi_Order.sh...

Script exit code: 1

Script result: Traceback (most recent call last):

File "/Library/Application Support/JAMF/tmp/Set_Wifi_Order.sh", line 35, in

profiles = list(configuration_copy.networkProfiles())

TypeError: 'NoneType' object is not iterable

Error running script: return code was 1.

[STEP 3 of 4]

[STEP 4 of 4]

Any ideas? I only have one SSID listed:

#!/usr/bin/python



# As written, this requires the following:

# - OS X 10.6+ (has been reported working through 10.12.3)

# - python 2.6 or 2.7 (for collections.namedtuple usage, should be fine as default python in 10.6 is 2.6)

# - pyObjC (as such, recommended to be used with native OS X python install)



# Run with root



import objc, ctypes.util, os.path, collections

from Foundation import NSOrderedSet



# List of preferred SSIDs in priority order - edit/add/delete as needed

PreferredSSIDs = ["ILAnetwork"]



def load_objc_framework(framework_name):

    # Utility function that loads a Framework bundle and creates a namedtuple where the attributes are the loaded classes from the Framework bundle

    loaded_classes = dict()

    framework_bundle = objc.loadBundle(framework_name, bundle_path=os.path.dirname(ctypes.util.find_library(framework_name)), module_globals=loaded_classes)

    return collections.namedtuple('AttributedFramework', loaded_classes.keys())(**loaded_classes)



# Load the CoreWLAN.framework (10.6+)

CoreWLAN = load_objc_framework('CoreWLAN')



# Load all available wifi interfaces

interfaces = dict()

for i in CoreWLAN.CWInterface.interfaceNames():

    interfaces[i] = CoreWLAN.CWInterface.interfaceWithName_(i)



# Repeat the configuration with every wifi interface

for i in interfaces.keys():

    # Grab a mutable copy of this interface's configuration

    configuration_copy = CoreWLAN.CWMutableConfiguration.alloc().initWithConfiguration_(interfaces[i].configuration())

    # Find all the preferred/remembered network profiles

    profiles = list(configuration_copy.networkProfiles())

    # Grab all the SSIDs, in order

    SSIDs = [x.ssid() for x in profiles]

    # Loop through PreferredSSIDs list in reverse order sorting each entry to the front of profiles array so it

    # ends up sorted with PreferredSSIDs as the first items.

    # Order is preserved for other SSIDs, example where PreferredSSIDs is [ssid3, ssid4]:

    #    Original: [ssid1, ssid2, ssid3, ssid4]

    #   New order: [ssid3, ssid4, ssid1, ssid2]

    for aSSID in reversed(PreferredSSIDs):

        profiles.sort(key=lambda x: x.ssid() == aSSID, reverse=True)

    # Now we have to update the mutable configuration

    # First convert it back to a NSOrderedSet

    profile_set = NSOrderedSet.orderedSetWithArray_(profiles)

    # Then set/overwrite the configuration copy's networkProfiles

    configuration_copy.setNetworkProfiles_(profile_set)

    # Then update the network interface configuration

    result = interfaces[i].commitConfiguration_authorization_error_(configuration_copy, None, None)

@rqomsiya Sounds to me like those computers either don't have the SSID (profile) configured or don't have a WIFI interface.

sdagley's version of the script works perfectly on OSX 11.x

FYI: In Big Sur, Apple moved the known networks from /Library/Preferences/SystemConfiguration/com.apple.airport.preferences.plist to /Library/Preferences/com.apple.wifi.known-networks.plist file.

Anyone still using a script to manage order of preferred wireless networks in MacOS 11 or above?  If so is it working?

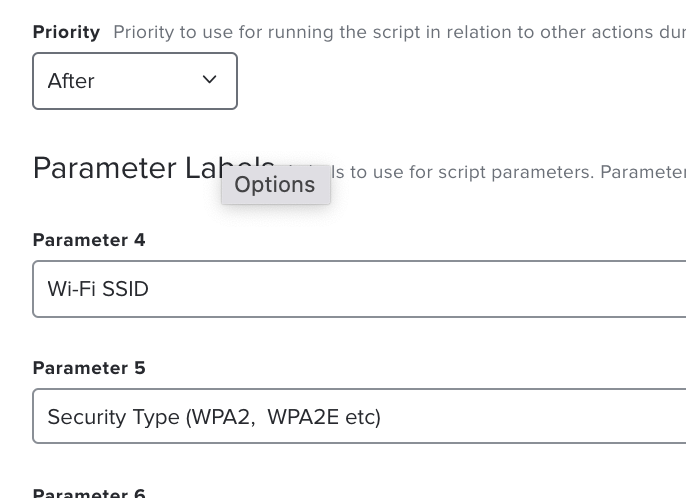

We use this script and set the S4 & S5 values in the Script Parameters in the Script Payload of the policy.
The script removes and adds and when adding the network goes to the top of the list, even if you are connected to the Wi-Fi network being removed and added we see no loss of connection.

@MatG That will break any 802.1x configuration that was in effect for the SSID.

@sdagley We have it in place on our Monterey devices and its not causing any issues and was thoroughly tested with numerous devices. We are not getting any reports of loss of connection.
