Always On VPN Configuration

Here's a config i've been messing with in sandbox for a while, seems to work pretty well. The idea is to target your company's DNS IP address - the config will try to contact the IP address. If success, no VPN connection is needed. If it can't ping your DNS, a VPN connection attempt is made. Note that there is no key set up for ethernet connections, but it's not hard to add.

 <?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<key>OnDemandEnabled</key>
        <integer>1</integer>
 <key>OnDemandRules</key>
        <dict>
            <key>Action</key>
            <string>Disconnect</string>
            <key>DNSServerAddressMatch</key>
            <array>
                <string>***</string>
                <string>***</string>
            </array>
            <key>InterfaceTypeMatch</key>
                <string>WiFi</string>
            <key>SSIDMatch</key>
                <array>
                    <string>***</string>
                </array>
        </dict>
        <dict>
            <key>Action</key>
                <string>Connect</string>
        </dict>

Thanks @ajfunk , that looks like it could be a helpful piece of the puzzle.

Can anyone that has implemented "Always On VPN" with their Macs via Jamf share their steps?

Here is where I am at so far. Our networking department gave me a couple of certificates that need to be installed on the client machines that will have the Always On VPN service enabled.

I think that I need to enable my Jamf Pro server as a SCEP proxy so I can get the two certificates in on the Macs. OR, can I just put the certificates in my VPN profile, like we do with our Network profiles for SSIDs?

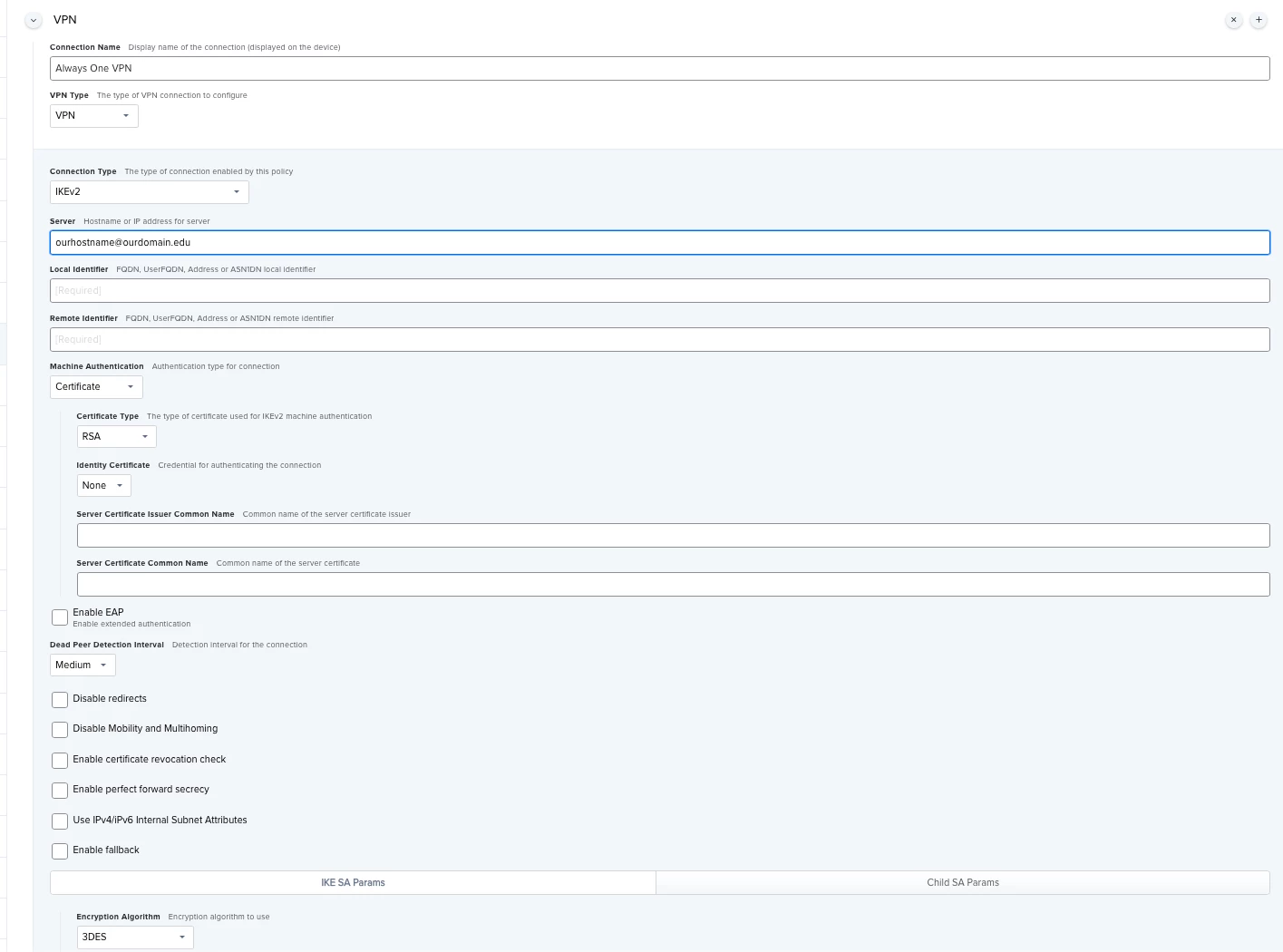

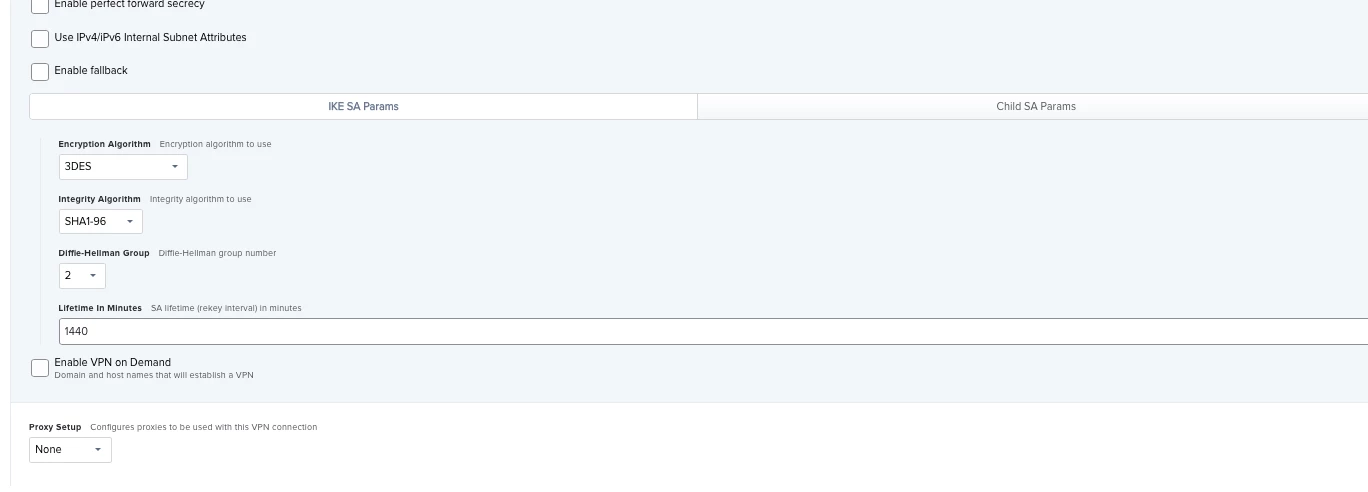

Next, I believe I need to create a VPN configuration profile. Here is screenshot(s) of where I am with that so far:

If you're already using certificate authentication with AnyConnect I would look at using the AlwaysOn capability built into what you already have deployed.

Hi @dtmille2 - the screen you showed above seems to be for iOS.  I thought you were trying to do AoVPN for Mac's?

I too am trying to figure out how to do this for Mac's - did you get anywhere?

Hi @dlondon , we ended up using the AnyConnect app and a two factor authentication protocol.

Thanks @dtmille2  - Jamf Support pointed out my mistake - had to change to User profile in General section.

I'll check out AnyConnect but we will be doing machine auth using a Certificate
