Yeah Bol.  The first two line above is exactly on my original script.  Now I'm just updating that to fit in Junjishimazaki's script.  Thanks for the $kickstart lines.  I'll give it a shot.

Oh... This is for all local user accounts. Yes?

-users "$localUserName"

So for specific users, should it look like this?

-users "USER1" "USER2"

  Or without quotes?

-users USER1,USER2

Anyone know where the settings for Remote Management reside? I think that on the computers where I am seeing this weird error in ARD, something in the remote computer is completely messed up and toggling the check-box for Remote Management isn't enough to clear out the issue. I would like to avoid reinstalling the OS if possible.

Somewhere on the computer besides in the Apple System Preferences / Sharing in Service column?

What's the weird ARD error?

I get the following error when I try to connect via Apple Remote Desktop or the built in VNC… This occurs on both M1 and Intel machines.

connectionFailed

serverUnableToReadScreenMessage

I am looking for the actual (I assume) plist file that stores all this info on Remote Desktop settings. I think I have a bunch of computers where this file is somehow locked and I cannot reset it at all. My only recourse lately is to reinstall the OS...and even then, it hasn't always worked. In those cases, I have to do a wipe and install.

On the off-chance that the eardm2 function proves helpful:

https://snelson.us/2022/05/bz-please/

Yeah Bol.  The first two line above is exactly on my original script.  Now I'm just updating that to fit in Junjishimazaki's script.  Thanks for the $kickstart lines.  I'll give it a shot.

Oh... This is for all local user accounts. Yes?

-users "$localUserName"

So for specific users, should it look like this?

-users "USER1" "USER2"

  Or without quotes?

-users USER1,USER2

Yes sorry, replace with your local users, I am using a script variable so I can enter the username on the policy page.

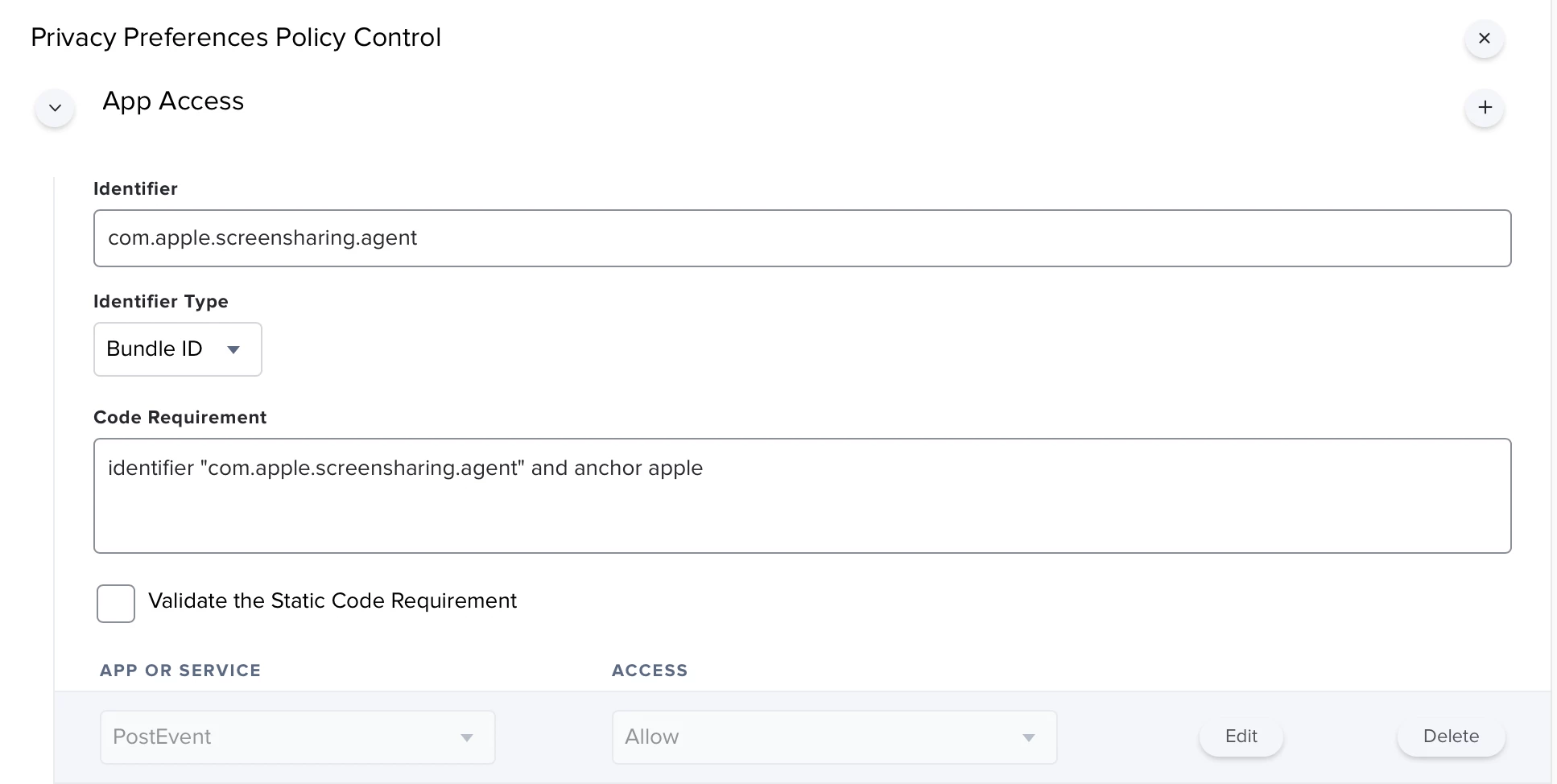

Im sorry if it’s been said but are you all scoping these two settings by config profiles also?

I haven’t gone back to see if one or both is still required but I know, at some point of testing, they were both needed to allow ARD to work again in latest macOS builds.

I get the following error when I try to connect via Apple Remote Desktop or the built in VNC… This occurs on both M1 and Intel machines.

connectionFailed

serverUnableToReadScreenMessage

I am looking for the actual (I assume) plist file that stores all this info on Remote Desktop settings. I think I have a bunch of computers where this file is somehow locked and I cannot reset it at all. My only recourse lately is to reinstall the OS...and even then, it hasn't always worked. In those cases, I have to do a wipe and install.

Yes sorry, replace with your local users, I am using a script variable so I can enter the username on the policy page.

Im sorry if it’s been said but are you all scoping these two settings by config profiles also?

I haven’t gone back to see if one or both is still required but I know, at some point of testing, they were both needed to allow ARD to work again in latest macOS builds.

I get the same results using a PPPC or without. Strange error, or a black screen.

~/Library/Containers/com.apple.RemoteDesktop/Data/Library/Preferences

Same error for me as well on Intel machines running Monterey.  Prior to Monterey, my original script is just fine.

@rcole:  Thanks for mentioning @dan-snelson's post.  At a quick glance, it too looks promising.  I'll have to give that a shot as well.

@Bol do you recommend scripting it and running after enrollment or Files and Processes?

@HappyTrails @kwoodard

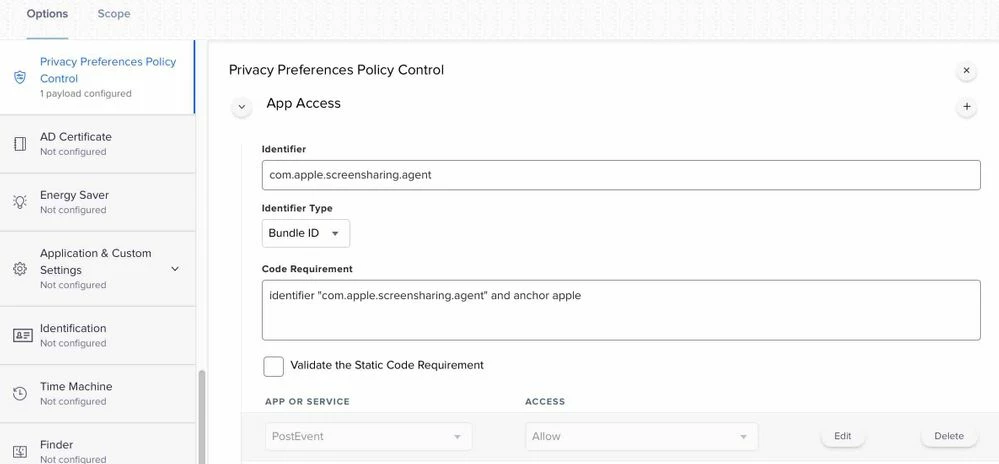

I went back and test, I believe only the PPPC profile was required for ARD. I couldn't find all the docs but from what I understand;

- Kickstart to setup privileges & users

- MDM / API to enable remote desktop

- Config profile to allow interaction of remote management via kickstart

Here's what I'm using in a policy triggered on startup, it will get applied soon after enrolment and can connect straight after. Please test before copy / pasting in your environment as I know there's some overkill elements to what I'm doing.

There was a lot of testing at the time and once it was all solid, i didn't get the chance to go back through and see what wasn't required. Also I removed the config profile and it did indeed break the workflow, so for me it was still a  required step.

You can replace $4 / $5 with your own values, I enter these on the policy the script it added too.

ps. How do we format code script for bash!?

@Bol I think I have done something wrong... When I use your code, modifying it for my needs, when I attempt to screen share with a remote machine using this script, I get a pop-up window that states that "Authentication failed to (computer name)"... Here is the output from when I run the script... When I am connecting to the remote computer, I am using one of the user/pass combo's that is showing up in the Screen Sharing ACL list.

@

@kwoodard  It looks like it's gone wrong during the api remote desktop command which makes sense you are seeing that error when connecting.

Double check two things;

- Encoded credentials : Make sure they are a mix of your api username and password by running this in terminal (enter your own user pass)

printf "user:pass" | iconv -t ISO-8859-1 | base64 -i -

dXNlcjpwYXNz

- Check the api user privileges is ticked: Settings - System Settings - Jamf Pro User Accounts & Groups - User - Privileges - Jamf Pro Server Actions -

Send Computer Remote Desktop Command

 Once we sort those two out I think it will start working for you.

I am getting an output that looks similar to the output your example generated. I also have the API user privileges set as shown (everything is checked in fact for the user).

I manually went into Remote Management and looked at the options...nothing is being set, so I think there is a discontinuity somewhere in the script beyond that http error...

@kwoodard

Ok well this is where we step through line by line, either the copied syntax will be wrong from what I posted or we will quickly find where things have gone wrong in the setup.

Start with copy pasting in your known values for;

encodedCredentials="somethingsoemthing!"

localUserName="username"

jamfpro_server_address="https://soemthing:8443"

machineUUID="findmeinjamfpro"

 Then you can paste in the commands to be print on the screen to check their output. Once we know they are ok, re-run that command to store them inside the variable.

eg.

/usr/bin/curl "${jamfpro_server_address}/uapi/auth/tokens" \\

--silent \\

--request POST \\

--header "Authorization: Basic $encodedCredentials"

authToken=$( /usr/bin/curl "${jamfpro_server_address}/uapi/auth/tokens" \\

--silent \\

--request POST \\

--header "Authorization: Basic $encodedCredentials" )

/usr/bin/awk -F \\" '{ print $4 }' <<< "$authToken" | /usr/bin/xargs

token=$( /usr/bin/awk -F \\" '{ print $4 }' <<< "$authToken" | /usr/bin/xargs )

/usr/bin/curl --request GET \\

        --url "${jamfpro_server_address}/api/v1/computers-inventory?section=USER_AND_LOCATION&filter=udid%3D%3D%22${machineUUID}%22" \\

        --silent \\

        --header "Authorization: Bearer $token"

computerrecord=$( /usr/bin/curl --request GET \\

        --url "${jamfpro_server_address}/api/v1/computers-inventory?section=USER_AND_LOCATION&filter=udid%3D%3D%22${machineUUID}%22" \\

        --silent \\

        --header "Authorization: Bearer $token" )

/usr/bin/osascript -l 'JavaScript' -e "JSON.parse(\\`$computerrecord\\`).results[0].id"

computerID=$( /usr/bin/osascript -l 'JavaScript' -e "JSON.parse(\\`$computerrecord\\`).results[0].id" )

And then test the big boss;

/usr/bin/curl --request POST \\

        --url "${jamfpro_server_address}/JSSResource/computercommands/command/EnableRemoteDesktop/id/$computerID" \\

        --silent \\

        --header "Authorization: Bearer $token"

Let us know what you find.

I will try to give this a go today. I will report back with my findings. Thank you for your help!

As an aside, I did a new setup yesterday, leaving out the Remote Management command. I got everything setup and manually checked the boxes for RM. Once I updated the computer to 12.4 from 11.6...RM doesn't work again.

Wanted to expand on my previous observation... I just provisioned a brand new computer, straight out of the box. Had some flavor of Big Sur on it. Did a full provisioning and setup (no Remote Management) then updated to Monterey 12.4 using the built in updater. Once finished, manually enabled Remote Management by checking the box, then checking all the options. Restarted the computer... When I tried to connect to the new machine (M1 MBP 13") I am getting the error I have seen a lot and listed above. Seems something is amiss here.

Wait a second, I’m confused.
If you are leaving out the remote management command in the script, are you then using the ‘enable remote desktop’ button in Jamf for this computer record?

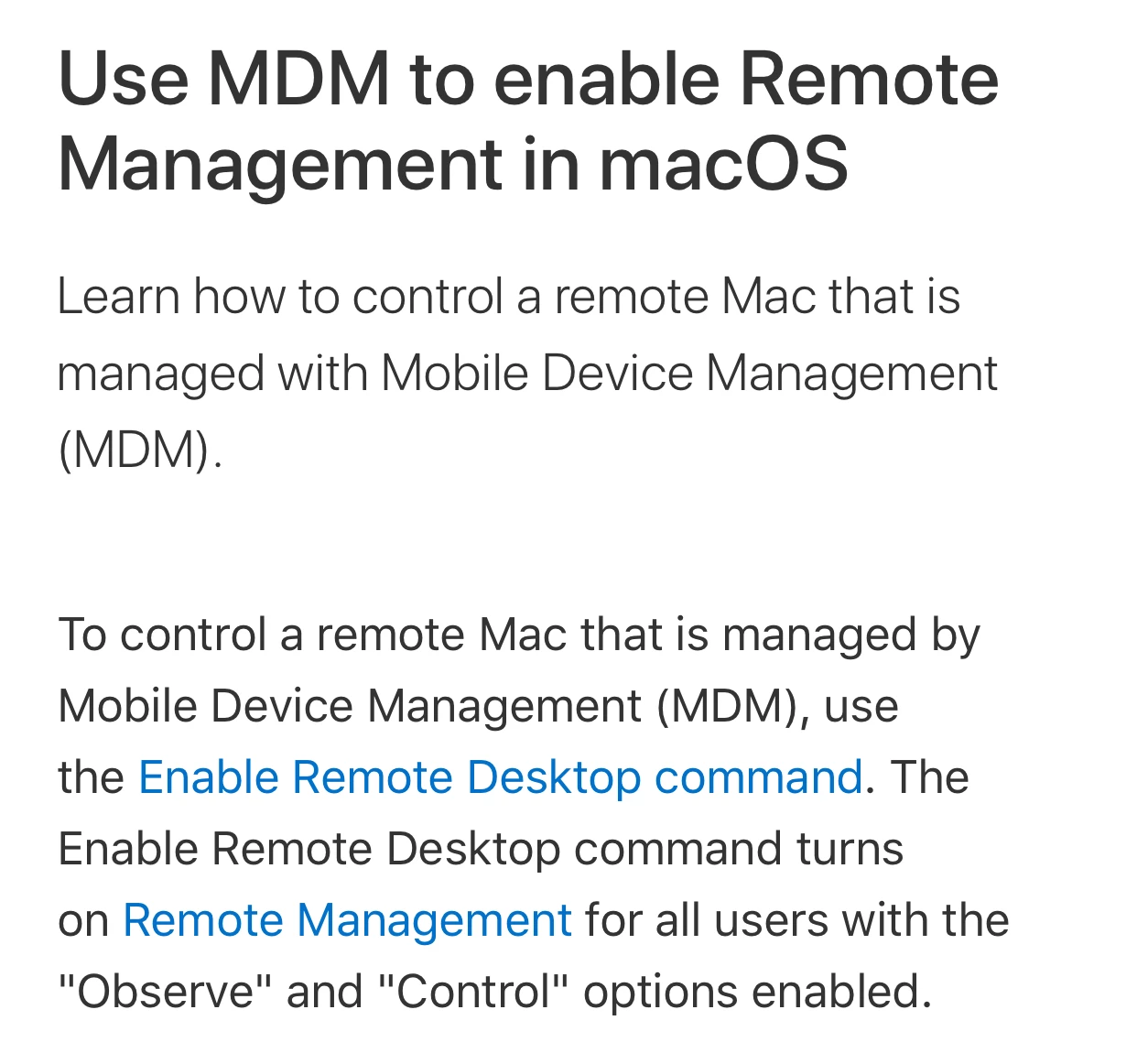

If the device is enrolled in MDM, then it must have enable Remote Desktop enabled via MDM also to work. (Either script : api or Jamf)

https://support.apple.com/en-us/HT209161

Usually I am doing the remote management command when provisioning a computer. Since I’m doing 80 this week and next, I’m trying out a few things as I go. Today, I disabled the remote management command in Jamf and wanted to see the behavior of manually enabling it. On 12.4, I get the same error across the board. M1/Intel… Jamf enabled or manually enabled… I get the same error when trying to connect to any computer on 12.4 from multiple other computers running ARD.

Usually I am doing the remote management command when provisioning a computer. Since I’m doing 80 this week and next, I’m trying out a few things as I go. Today, I disabled the remote management command in Jamf and wanted to see the behavior of manually enabling it. On 12.4, I get the same error across the board. M1/Intel… Jamf enabled or manually enabled… I get the same error when trying to connect to any computer on 12.4 from multiple other computers running ARD.
