Help with configuration profile for GlobalProtect

I am not able to get connect-method key to work either ... I also think that the setting can be pushed/overridden once the agent's 1st connection is made.

After my ticket with PAN I was able to get the connect-method and portal address working, however I had to abandon the config profile and just use a separate Composer Package to drop the plist file in the directory. So I have one stock PKG file to install the client, then a PKG I created to drop the plist in /Library/Preferences. I will paste my plist that worked below if anyone needs it. (This worked for 5.2.2 and 5.2.3)

<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Palo Alto Networks</key> <dict> <key>GlobalProtect</key> <dict> <key>PanGPS</key> <dict/> <key>PanSetup</key> <dict> <key>Portal</key> <string>YOUR PORTAL HERE</string> </dict> <key>Settings</key> <dict> <key>connect-method</key> <string>on-demand</string> </dict> </dict> </dict> </dict> </plist>

I've ended up taking the above info, and some of @elliotjordan 's work and come up with this. It sits in the postinstall pkg I wrap around Palo Alto's installer.

# Remove GlobalProtectService keychain item from all users' login keychains.
USER_LIST=$(/usr/bin/dscl . -list /Users UniqueID | awk '$2 > 500 {print $1}')

for THIS_USER in $USER_LIST; do
    USER_HOME=$(/usr/bin/dscl . -read "/Users/$THIS_USER" NFSHomeDirectory | awk '{print $2}')
    USER_KEYCHAIN="$USER_HOME/Library/Keychains/login.keychain-db"
    if [[ -f "$USER_KEYCHAIN" ]]; then
        if /usr/bin/security find-generic-password -s "GlobalProtectService" "$USER_KEYCHAIN" &>/dev/null; then
            /usr/bin/security delete-generic-password -s "GlobalProtectService" "$USER_KEYCHAIN" &>/dev/null
        fi
    fi
done

# Fix for the GP connecting all the time instead of on demand
defaults delete /Library/Preferences/com.paloaltonetworks.GlobalProtect.settings.plist
rm /Library/Preferences/com.paloaltonetworks.GlobalProtect.settings.plist
defaults write /Library/Preferences/com.paloaltonetworks.GlobalProtect.settings.plist '{ "Palo Alto Networks" = { GlobalProtect = { Settings = { "connect-method" = "on-demand" }; }; }; }'

It's not that sophisticated but it works, and unlike deploying a plist as mentioned above ... it is cfprefsd compatible.

Blast. Made a mistake with the copy. The defaults line is missing a ;

defaults write /Library/Preferences/com.paloaltonetworks.GlobalProtect.settings.plist '{ "Palo Alto Networks" = { GlobalProtect = { Settings = { "connect-method" = "on-demand"; }; }; }; }'

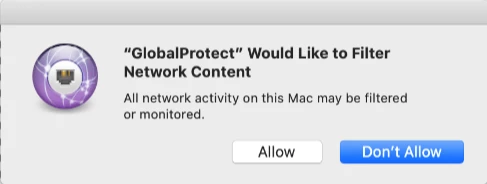

Does anyone have information regarding a Content Filter for Global Protect? I want to prevent the filter prompts that appear during installation.

As far as i'm aware GP isn't installing a content filter, even on latest 5.2.4.

@franton I'm currently testing Global Protect 5.2.4 on 11.1 and during installation I'm receiving Content Filter prompts that disrupt DEPNotify. Palo Alto provided 4 configuration profiles to get around this issue in addition to the System Extension/Kernel Extension/PCC/Notificaion profile that you need to configure yourself. One of the provided profiles does not install if you are running Jamf Cloud version 26 due to a Jamf Pro issue. Jamf says that the issue should be resolved in the next release.

You may also not see this if your GP Protect Admins have turned specific features such as "Enforcement" off.

@bwoods Could you share the CP's from Palo Alto that allowed you to get around these issues?

Thanks in advance...

@smpotter contact me on the macadmins #paloalto Slack channel. My name is brndnwds6 on Slack.

I have recently configured for my environment and this solution worked perfectly.

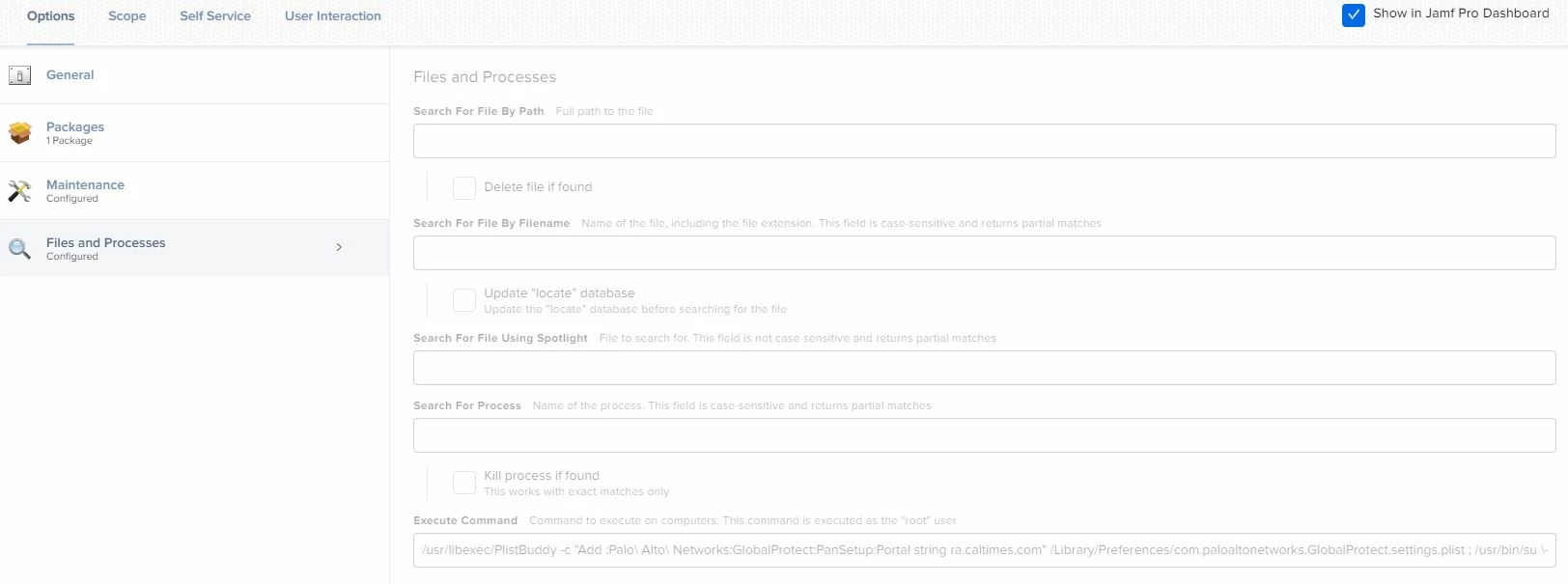

Policies > Files and Processes
Execute Command
/usr/libexec/PlistBuddy -c "Add :Palo Alto Networks:GlobalProtect:PanSetup:Portal string servername" /Library/Preferences/com.paloaltonetworks.GlobalProtect.settings.plist ; /usr/bin/su - "/usr/bin/stat -f%Su /dev/console" -c "/usr/bin/pkill -l -U /usr/bin/stat -f%Su /dev/console GlobalProtect" ; /bin/sleep 3 ; /usr/local/bin/jamf recon

Post installation, it updates the server name and works great.

Hi everyone, so been trying to set this up for a few days and can't figure it out. the documentation from PA is not really clear, so far I have tried everything that was suggested here but no luck. And when I made changes to the Plist the address only gets added after a reboot. am I missing something?

@mmunoz I tried the above process and it worked well all OS. We kept 10.10 only excluded. Please let me know if this works for you.

Anybody else seeing GlobalProtect 5.2.5-84 triggering a "You are making changes to System Certificate Trust Settings" authorization prompt at the first connection attempt after initial install (so @franton's removal of the GPService keychain isn't applicable) on Big Sur systems?

Yes @sdagley I have the same issue. Did you figure it out?

thanks!

@tender It appears that prompt is a requirement on Big Sur now based on the responses I received to my question.

@sdagley: It was something on the VPN backend setting. The root cert was configured to install and disabling that resolved the issue.

@tender Thanks for that info. I'll have to get with our GP team to find out if they're doing the same, and if that certificate is really required. Hopefully it can be deployed via a Configuration Profile if it is.

@Saikat I get an error when running that command.
Running command /usr/libexec/PlistBuddy -c "Add :Palo Alto Networks:GlobalProtect:PanSetup:Portal string myvpn" /Library/Preferences/com.paloaltonetworks.GlobalProtect.settings.plist ; /usr/bin/su - "/usr/bin/stat -f%Su /dev/console" -c "/usr/bin/pkill -l -U /usr/bin/stat -f%Su /dev/console GlobalProtect" ; /bin/sleep 3 ; /usr/local/bin/jamf recon...
Result of command:
su: unknown login: /usr/bin/stat -f%Su /dev/console

@Jamie.Boyd you made a mistake in the command. Please see the command line below.

/usr/libexec/PlistBuddy -c "Add :Palo Alto Networks:GlobalProtect:PanSetup:Portal string servername" /Library/Preferences/com.paloaltonetworks.GlobalProtect.settings.plist ; /usr/bin/su - "/usr/bin/stat -f%Su /dev/console" -c "/usr/bin/pkill -l -U /usr/bin/stat -f%Su /dev/console GlobalProtect" ; /bin/sleep 3 ; /usr/local/bin/jamf recon

Thanks @saikat.tripathi. I'm copying and pasting the command directly into Jamf, and changing the portal string to my vpn name. Can you tell me where the difference is? It looks exactly the same to me.

@saikat.tripathi @Jamie.Boyd The forum software tends to mangle code if one doesn't use the ` (backtick) escape character at the beginning and end of the code. Better yet is to put the script fragment in a separate block by using the ``` (triple-backtick) on a new line, followed by the script lines, and closed by another ``` on a new line. Or just type the code, select it, then use the icon above the Post Response field that looks like >_ to mark the selection as a code block.

You might also find creating a Script in Jamf Pro for this rather than stuffing it into a Files and Processes -> Execute Command makes life easier since you're not limited to a single line for the entire command.

To suppress the keychain system popup for GP 5.2.x you need to export the PaloAltoCA from keychain, upload it in a configuration profile with cert payload, mark it as Allow apps to access and scope it to your device(s). This isnt documented anywhere but was the obvious change that prompted that popup

For its VPN and content filter settings I have been battling with the incompetent Palo Alto support to issue the settings required but this is what they said: "Upon checking found that the JAMF is not the supported MDM from the PaloAlto. The supported MDM are the AirWatch ,Microsoft Intune ,MobileIron ,Google Admin console"

So i asked them for the MobileIron and Airwatch settings.... not heard back yet. I will post here the settings if they ever supply them...

@tender Do you know to go about disabling the installation of the Palo Alto root cert?  Thanks in advance!

@tfish Way would you want to disable the installation of the Palo Alto root cert? That's probably  necessary for GlobalProtect to establish a connection.
