Mojave policy banner weirdness

Am I the only one seeing problems with the policy banner? If so, I might need to dig deeper.

Thanks,
Justin.

Nope been broken since the early betas.

Ok, at least it's not just me. Thanks a lot for the confirmation!

Nope, us too. And it's hit or miss. No rhyme or reason to it. I thought maybe external monitors were messing with it, but I can never replicate it.

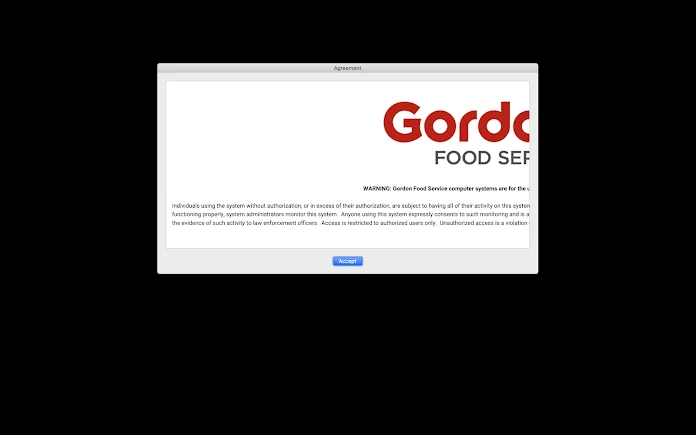

Thank you both for the validation. I found mine aligns vertically just fine but I need to scroll left/right to see the text. It works fine except for a cold boot, e.g. log out/log in works perfectly.

I resorted to including an image in the rtfd of the text / graphics instead of the text itself, as the formatting kept getting borked.

Now there's an idea, I'll give that a try!

It usually happens at a reboot and not at a logout / login. I tried the screenshot of the text and logo and that worked for a while but I'm still seeing the same scroll left and right within the policy banner. Mojave has a different format for .rtf. It's .rtfd so I guess that has something to do with it.

Ran into this problem today. Anybody figure out anything further?

BTW... RTFD (Rich Text Format Directory) is not a new format. It's an RTF (Rich Text Format) file with attachments. If you right-click one and choose "Show Package Contents", you'll see your .rtf file, plus any pasted graphics. It's a bundle, just like an app, or an old non-flat package, or a KEXT. TextEdit automatically uses this file type when you paste a graphic into a document.

The fact that it's not just my campus gave me hope, but seeing that it's been an issue without a fix since 2/2019 dashed all of that. Anyone seen any progress in Catalina? I haven't had any issues with my test computer, but it never had the issue to start with.

Catalina seems to display an oddly narrow Policy Banner window compared to previous macOS versions, but so far in my limited testing, it does appear to display the contents properly, unlike Mojave.

@georgecm12 Indeed, I'm experiencing the same thing and am wondering if the new, smaller and narrower banner window is now simply a 'feature' on Catalina.

I first came across issues with banners in, I think, the second Beta, where, once the file was in place at /Library/Security/PolicyBanner.rtfd and the permissions were set, upon restarting the startup hung around 2/3 through the progress bar and never got to the login window. Remotely deleting the file and restarting allowed it to start up as normal.

From Beta 9 (Build: 19A573a) onwards it no longer caused the hang at startup for me, but, as you are experiencing, truncates the size of the banner window so it no longer looks like the example shown at https://support.apple.com/en-gb/HT202277 but rather is about 3/5 of that original size (which looks to have previously been A4) and forces the content to be scrolled.

I put all this in feedback to Apple throughout the Betas but never heard anything back :(

Yes, its now using a fixed size which is really too small.

Hello, How can I insert my Company logo to the. rtf file. Please help

@Eddy72 You have to create an "Rich Text Document with Attachments", or RTFD. It's a bundle that contains the RTF file along with all the images. You can create the RTFD with TextEdit.

Thank you George

has anyone gotten/found a fix for this? we're trying to implement it here and the window size itself doesn't fit to screen

My solution was to do what @dgreening did above, switch to an RTFM file that only contains an image, no text. That seems to be the only thing that works 100% for me.

More detailed instructions:

1. I created an InDesign document that was 6.5" by 6" with no margins. (I could have gone longer than 6" had I had to, but didn't need to. It also plays it safe for smaller screen sizes.)
2. I laid out my text and the graphics I wanted to use in the InDesign document.
3. I then exported it as a PNG, with the following options selected in the PNG Export dialog box: Quality set to Maximum, Resolution set to 300 ppi, Transparent background enabled, Anti-Alias enabled
4. I created a new document in TextEdit. I dragged in the newly created PNG, centered the image, then saved the resulting document as PolicyBanner.rtfm.

The result is a little small on some of our screens, but again, it plays it safe so that I can use the same Policy Banner on all of our machines, whatever the screen size/resolution is.

I also did what @dgreening did but instead of InDesign, I created a 1265x784 document in Photoshop.

How are you all getting the logo image to stay? I get rtfd in textedit, BUT when I try to add the image there it's huge and I can't resize. I understand this is very basic and I should feel stupid.

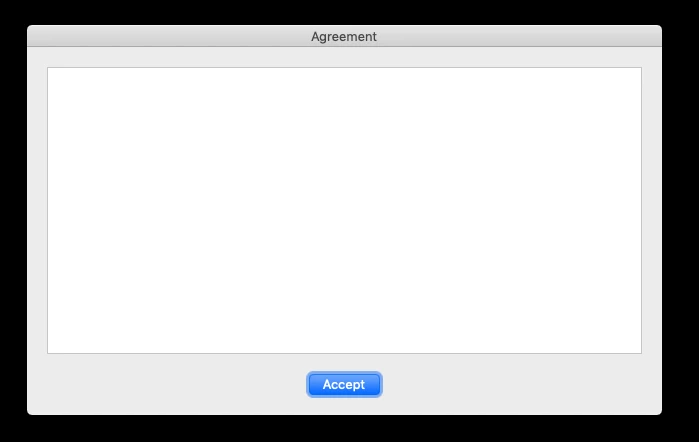

I just deployed a policy banner to 600+ machines, and within two days I have at least one report of a blank policy banner on Catalina after it worked for the first day. As far as I know, all other machines are working fine so far.

I created and deployed an RTFD with the permissions set per Apple's documentation. I used a 12KB PNG logo at 853x147 res, plus a couple small paragraphs of text whiteout any fancy formatting.

Had one of our user support guys delete the policy banner file and drop a new copy of it back in place, no difference. Policy banner still blank.

Is there any known issue that ever got documented on this, or is it just a random bug that I'll never really get to the bottom of?

We currently use it with all 2000 of our devices, Mojave, Catalina and Big Sur alike. My recommendation is to follow these steps:

How to set up a policy banner in macOS

Another step I'd add though is to make your policybanner.rftd, take a screenshot of everything in it, then make a new policybanner.rftd file to replace it with and only have the screenshot of the first one in it. Essentially, its the only way i've found to make sure that all the text and images you want to show don't get pushed off the window or need a scrollbar on all the random sized windows that everyone has at home in this world of remote workers.

(Similar post here with same answer.)
