Smart Group for missing Filevault2 Keys

  • May 25, 2023
  • 3 replies
  • 30 views
Raffael
Forum|alt.badge.img+5

Hi Jamf Community,



i have been trying to setup a search for all devices that dont have a personal recovery key set . Unfortunately there is no such option. Then i thought i could just check if the Filevault Encryption is "Valid". This would be great but, some of the devices in my jamf network dont have a recovery key set, but are encrytped. I was trying to figure out how to search for all of these devices so i could issue a new key for them. Is there any way to do this ?

Thanks ahead,

Raffael

    3 replies

    mickl089
    Forum|alt.badge.img+11
    • mickl089
    • Valued Contributor
    • 147 replies
    • May 25, 2023

    DonΒ΄t know if it works anymore, but you have to setup an extension attribute:

    Check the status of the encryption:


    #!/bin/bash CORESTORAGESTATUS="/private/tmp/corestorage.txt" ENCRYPTSTATUS="/private/tmp/encrypt_status.txt" ENCRYPTDIRECTION="/private/tmp/encrypt_direction.txt" osvers_major=$(sw_vers -productVersion | awk -F. '{print $1}') osvers_minor=$(sw_vers -productVersion | awk -F. '{print $2}') # Checks to see if the OS on the Mac is 10.x.x. If it is not, the # following message is displayed without quotes: # # "Unknown Version Of Mac OS X" if [[ ${osvers_major} -ne 10 ]]; then echo "<result>Unknown Version Of Mac OS X</result>" fi # Checks to see if the OS on the Mac is 10.7 or higher. # If it is not, the following message is displayed without quotes: # # "FileVault 2 Encryption Not Available For This Version Of Mac OS X" if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -lt 7 ]]; then echo "<result>FileVault 2 Encryption Not Available For This Version Of Mac OS X</result>" fi if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -ge 7 ]] && [[ ${osvers_minor} -lt 13 ]]; then diskutil cs info / >> $CORESTORAGESTATUS 2>&1 # If the Mac is running 10.7 through 10.12, but the boot volume # is not a CoreStorage volume, the following message is # displayed without quotes: # # "FileVault 2 Encryption Not Enabled" if grep -iE '/ is not a CoreStorage disk' $CORESTORAGESTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Not Enabled</result>" rm -f "$CORESTORAGESTATUS" exit 0 fi # If the Mac is running 10.7 through 10.12 and the boot volume # is a CoreStorage volume, the script then checks to see if # the machine is encrypted, encrypting, or decrypting. # # If encrypted, the following message is # displayed without quotes: # "FileVault 2 Encryption Complete" # # If encrypting, the following message is # displayed without quotes: # "FileVault 2 Encryption Proceeding." # How much has been encrypted of of the total # amount of space is also displayed. If the # amount of encryption is for some reason not # known, the following message is # displayed without quotes: # "FileVault 2 Encryption Status Unknown. Please check." # # If decrypting, the following message is # displayed without quotes: # "FileVault 2 Decryption Proceeding" # How much has been decrypted of of the total # amount of space is also displayed # # If fully decrypted, the following message is # displayed without quotes: # "FileVault 2 Decryption Complete" # # Get the Logical Volume UUID (aka "UUID" in diskutil cs info) # for the boot drive's CoreStorage volume. LV_UUID=`diskutil cs info / | awk '/UUID/ {print $2;exit}'` # Get the Logical Volume Family UUID (aka "Parent LVF UUID" in diskutil cs info) # for the boot drive's CoreStorage volume. LV_FAMILY_UUID=`diskutil cs info / | awk '/Parent LVF UUID/ {print $4;exit}'` CONTEXT=`diskutil cs list $LV_FAMILY_UUID | awk '/Encryption Context/ {print $3;exit}'` if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -eq 7 || ${osvers_minor} -eq 8 ]]; then CONVERTED=`diskutil cs list $LV_UUID | awk '/Size \\(Converted\\)/ {print $5,$6;exit}'` fi if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -ge 9 ]]; then CONVERTED=`diskutil cs list $LV_UUID | awk '/Conversion Progress/ {print $3;exit}'` fi ENCRYPTIONEXTENTS=`diskutil cs list $LV_FAMILY_UUID | awk '/Has Encrypted Extents/ {print $4;exit}'` ENCRYPTION=`diskutil cs list $LV_FAMILY_UUID | awk '/Encryption Type/ {print $3;exit}'` SIZE=`diskutil cs list $LV_UUID | awk '/Size \\(Total\\)/ {print $5,$6;exit}'` # This section does 10.7-specific checking of the Mac's # FileVault 2 status if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -eq 7 ]]; then if [ "$CONTEXT" = "Present" ]; then if [ "$ENCRYPTION" = "AES-XTS" ]; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Status/ {print $3;exit}' >> $ENCRYPTSTATUS if grep -iE 'Complete' $ENCRYPTSTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Complete</result>" else if grep -iE 'Converting' $ENCRYPTSTATUS 1>/dev/null; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Direction/ {print $3;exit}' >> $ENCRYPTDIRECTION if grep -iE 'Forward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Encryption Proceeding. $CONVERTED of $SIZE Encrypted</result>" else echo "<result>FileVault 2 Encryption Status Unknown. Please check.</result>" fi fi fi else if [ "$ENCRYPTION" = "None" ]; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Direction/ {print $3;exit}' >> $ENCRYPTDIRECTION if grep -iE 'Backward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Proceeding. $CONVERTED of $SIZE Decrypted</result>" elif grep -iE '-none-' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Completed</result>" fi fi fi fi fi fi # This section does checking of the Mac's FileVault 2 status # on 10.8.x through 10.10.x if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -ge 8 ]] && [[ ${osvers_minor} -lt 11 ]]; then if [[ "$ENCRYPTIONEXTENTS" = "No" ]]; then echo "<result>FileVault 2 Encryption Not Enabled</result>" elif [[ "$ENCRYPTIONEXTENTS" = "Yes" ]]; then diskutil cs list $LV_FAMILY_UUID | awk '/Fully Secure/ {print $3;exit}' >> $ENCRYPTSTATUS if grep -iE 'Yes' $ENCRYPTSTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Complete</result>" else if grep -iE 'No' $ENCRYPTSTATUS 1>/dev/null; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Direction/ {print $3;exit}' >> $ENCRYPTDIRECTION if grep -iE 'forward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Encryption Proceeding. $CONVERTED of $SIZE Encrypted</result>" else if grep -iE 'backward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Proceeding. $CONVERTED of $SIZE Decrypted</result>" elif grep -iE '-none-' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Completed</result>" fi fi fi fi fi fi # This section does checking of the Mac's FileVault 2 status # on 10.11.x through 10.12.x if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -ge 11 ]] && [[ ${osvers_minor} -lt 13 ]]; then if [[ "$ENCRYPTION" = "None" ]] && [[ $(diskutil cs list "$LV_UUID" | awk '/Conversion Progress/ {print $3;exit}') == "" ]]; then echo "<result>FileVault 2 Encryption Not Enabled</result>" elif [[ "$ENCRYPTION" = "None" ]] && [[ $(diskutil cs list "$LV_UUID" | awk '/Conversion Progress/ {print $3;exit}') == "Complete" ]]; then echo "<result>FileVault 2 Decryption Completed</result>" elif [[ "$ENCRYPTION" = "AES-XTS" ]]; then diskutil cs list $LV_FAMILY_UUID | awk '/High Level Queries/ {print $4,$5;exit}' >> $ENCRYPTSTATUS if grep -iE 'Fully Secure' $ENCRYPTSTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Complete</result>" else if grep -iE 'Not Fully' $ENCRYPTSTATUS 1>/dev/null; then if [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $4;exit}') != "" ]]; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Status/ {print $4;exit}' >> $ENCRYPTDIRECTION if grep -iE 'forward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Encryption Proceeding. $CONVERTED of $SIZE Encrypted</result>" elif grep -iE 'backward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Proceeding. $CONVERTED of $SIZE Decrypted</result>" fi elif [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $4;exit}') == "" ]]; then if [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $3;exit}') == "Complete" ]]; then echo "<result>FileVault 2 Decryption Completed</result>" fi fi fi fi fi fi if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -ge 13 ]]; then # If the OS on the Mac is 10.13 or higher, check to see if the # boot drive is formatted with APFS or HFS+ boot_filesystem_check=$(/usr/sbin/diskutil info / | awk '/Type \\(Bundle\\)/ {print $3}') # If the drive is formatted with APFS, the fdesetup tool will # be available and is able to display the encryption status. if [[ "$boot_filesystem_check" = "apfs" ]]; then # If encrypted, the following message is # displayed without quotes: # "FileVault is On." # # If encrypting, the following message is # displayed without quotes: # "Encryption in progress:" # How much has been encrypted of of the total # amount of space is also displayed. # # If decrypting, the following message is # displayed without quotes: # "Decryption in progress:" # How much has been decrypted of of the total # amount of space is also displayed # # If not encrypted, the following message is # displayed without quotes: # "FileVault is Off." ENCRYPTSTATUS=$(fdesetup status | xargs) if [[ -z $(echo "$ENCRYPTSTATUS" | awk '/Encryption | Decryption/') ]]; then ENCRYPTSTATUS=$(fdesetup status | head -1) echo "<result>$ENCRYPTSTATUS</result>" else ENCRYPTSTATUS=$(fdesetup status | tail -1) echo "<result>$ENCRYPTSTATUS</result>" fi fi if [[ "$boot_filesystem_check" = "hfs" ]]; then diskutil cs info / >> $CORESTORAGESTATUS 2>&1 if grep -iE '/ is not a CoreStorage disk' $CORESTORAGESTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Not Enabled</result>" rm -f "$CORESTORAGESTATUS" exit 0 fi # If the Mac is running 10.7 or higher and the boot volume # is a CoreStorage volume, the script then checks to see if # the machine is encrypted, encrypting, or decrypting. # # If encrypted, the following message is # displayed without quotes: # "FileVault 2 Encryption Complete" # # If encrypting, the following message is # displayed without quotes: # "FileVault 2 Encryption Proceeding." # How much has been encrypted of of the total # amount of space is also displayed. If the # amount of encryption is for some reason not # known, the following message is # displayed without quotes: # "FileVault 2 Encryption Status Unknown. Please check." # # If decrypting, the following message is # displayed without quotes: # "FileVault 2 Decryption Proceeding" # How much has been decrypted of of the total # amount of space is also displayed # # If fully decrypted, the following message is # displayed without quotes: # "FileVault 2 Decryption Complete" # # Get the Logical Volume UUID (aka "UUID" in diskutil cs info) # for the boot drive's CoreStorage volume. LV_UUID=`diskutil cs info / | awk '/UUID/ {print $2;exit}'` # Get the Logical Volume Family UUID (aka "Parent LVF UUID" in diskutil cs info) # for the boot drive's CoreStorage volume. LV_FAMILY_UUID=`diskutil cs info / | awk '/Parent LVF UUID/ {print $4;exit}'` CONTEXT=`diskutil cs list $LV_FAMILY_UUID | awk '/Encryption Context/ {print $3;exit}'` CONVERTED=`diskutil cs list $LV_UUID | awk '/Conversion Progress/ {print $3;exit}'` ENCRYPTIONEXTENTS=`diskutil cs list $LV_FAMILY_UUID | awk '/Has Encrypted Extents/ {print $4;exit}'` ENCRYPTION=`diskutil cs list $LV_FAMILY_UUID | awk '/Encryption Type/ {print $3;exit}'` SIZE=`diskutil cs list $LV_UUID | awk '/Size \\(Total\\)/ {print $5,$6;exit}'` # This section does checking of the Mac's FileVault 2 status if the boot drive is formatted with HFS+ if [[ "$ENCRYPTION" = "None" ]] && [[ $(diskutil cs list "$LV_UUID" | awk '/Conversion Progress/ {print $3;exit}') == "" ]]; then echo "<result>FileVault 2 Encryption Not Enabled</result>" elif [[ "$ENCRYPTION" = "None" ]] && [[ $(diskutil cs list "$LV_UUID" | awk '/Conversion Progress/ {print $3;exit}') == "Complete" ]]; then echo "<result>FileVault 2 Decryption Completed</result>" elif [[ "$ENCRYPTION" = "AES-XTS" ]]; then diskutil cs list $LV_FAMILY_UUID | awk '/High Level Queries/ {print $4,$5;exit}' >> $ENCRYPTSTATUS if grep -iE 'Fully Secure' $ENCRYPTSTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Complete</result>" else if grep -iE 'Not Fully' $ENCRYPTSTATUS 1>/dev/null; then if [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $4;exit}') != "" ]]; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Status/ {print $4;exit}' >> $ENCRYPTDIRECTION if grep -iE 'forward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Encryption Proceeding. $CONVERTED of $SIZE Encrypted</result>" elif grep -iE 'backward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Proceeding. $CONVERTED of $SIZE Decrypted</result>" fi elif [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $4;exit}') == "" ]]; then if [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $3;exit}') == "Complete" ]]; then echo "<result>FileVault 2 Decryption Completed</result>" fi fi fi fi else echo "<result>Unknown filesystem.</result>" fi fi fi # Remove the temp files created during the script if [ -f "$CORESTORAGESTATUS" ]; then rm -f "$CORESTORAGESTATUS" fi if [ -f "$ENCRYPTSTATUS" ]; then rm -f "$ENCRYPTSTATUS" fi if [ -f "$ENCRYPTDIRECTION" ]; then rm -f "$ENCRYPTDIRECTION" fi exit 0

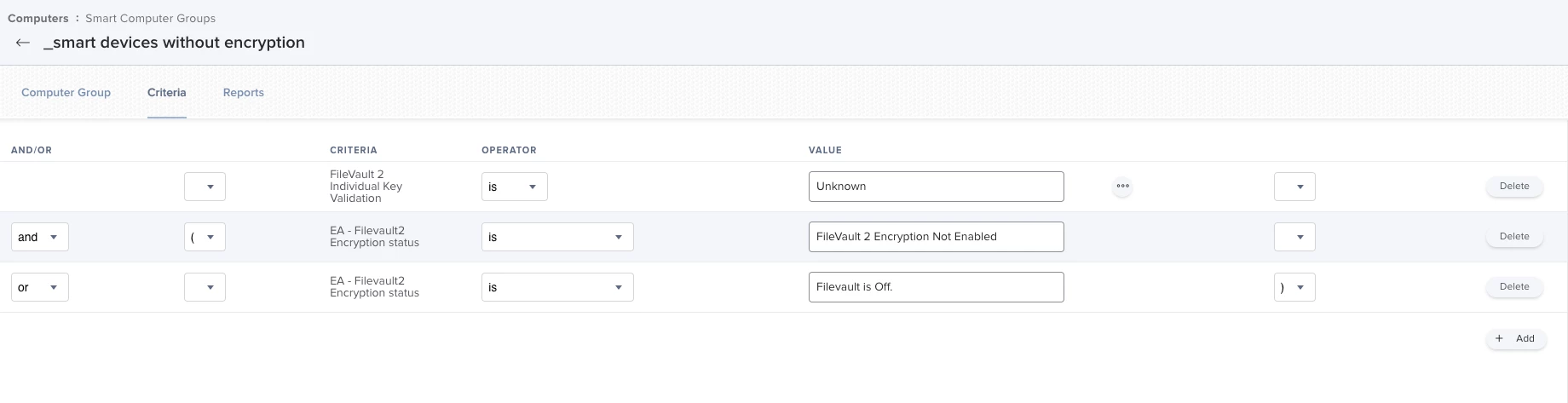

    Then create a smart group like this:



    just modify β€ƒthe settings in the smart group like you want.

    Raffael
    Forum|alt.badge.img+5
    • Raffael
    • Author
    • New Contributor
    • 3 replies
    • May 25, 2023

    DonΒ΄t know if it works anymore, but you have to setup an extension attribute:

    Check the status of the encryption:


    #!/bin/bash CORESTORAGESTATUS="/private/tmp/corestorage.txt" ENCRYPTSTATUS="/private/tmp/encrypt_status.txt" ENCRYPTDIRECTION="/private/tmp/encrypt_direction.txt" osvers_major=$(sw_vers -productVersion | awk -F. '{print $1}') osvers_minor=$(sw_vers -productVersion | awk -F. '{print $2}') # Checks to see if the OS on the Mac is 10.x.x. If it is not, the # following message is displayed without quotes: # # "Unknown Version Of Mac OS X" if [[ ${osvers_major} -ne 10 ]]; then echo "<result>Unknown Version Of Mac OS X</result>" fi # Checks to see if the OS on the Mac is 10.7 or higher. # If it is not, the following message is displayed without quotes: # # "FileVault 2 Encryption Not Available For This Version Of Mac OS X" if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -lt 7 ]]; then echo "<result>FileVault 2 Encryption Not Available For This Version Of Mac OS X</result>" fi if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -ge 7 ]] && [[ ${osvers_minor} -lt 13 ]]; then diskutil cs info / >> $CORESTORAGESTATUS 2>&1 # If the Mac is running 10.7 through 10.12, but the boot volume # is not a CoreStorage volume, the following message is # displayed without quotes: # # "FileVault 2 Encryption Not Enabled" if grep -iE '/ is not a CoreStorage disk' $CORESTORAGESTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Not Enabled</result>" rm -f "$CORESTORAGESTATUS" exit 0 fi # If the Mac is running 10.7 through 10.12 and the boot volume # is a CoreStorage volume, the script then checks to see if # the machine is encrypted, encrypting, or decrypting. # # If encrypted, the following message is # displayed without quotes: # "FileVault 2 Encryption Complete" # # If encrypting, the following message is # displayed without quotes: # "FileVault 2 Encryption Proceeding." # How much has been encrypted of of the total # amount of space is also displayed. If the # amount of encryption is for some reason not # known, the following message is # displayed without quotes: # "FileVault 2 Encryption Status Unknown. Please check." # # If decrypting, the following message is # displayed without quotes: # "FileVault 2 Decryption Proceeding" # How much has been decrypted of of the total # amount of space is also displayed # # If fully decrypted, the following message is # displayed without quotes: # "FileVault 2 Decryption Complete" # # Get the Logical Volume UUID (aka "UUID" in diskutil cs info) # for the boot drive's CoreStorage volume. LV_UUID=`diskutil cs info / | awk '/UUID/ {print $2;exit}'` # Get the Logical Volume Family UUID (aka "Parent LVF UUID" in diskutil cs info) # for the boot drive's CoreStorage volume. LV_FAMILY_UUID=`diskutil cs info / | awk '/Parent LVF UUID/ {print $4;exit}'` CONTEXT=`diskutil cs list $LV_FAMILY_UUID | awk '/Encryption Context/ {print $3;exit}'` if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -eq 7 || ${osvers_minor} -eq 8 ]]; then CONVERTED=`diskutil cs list $LV_UUID | awk '/Size \\(Converted\\)/ {print $5,$6;exit}'` fi if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -ge 9 ]]; then CONVERTED=`diskutil cs list $LV_UUID | awk '/Conversion Progress/ {print $3;exit}'` fi ENCRYPTIONEXTENTS=`diskutil cs list $LV_FAMILY_UUID | awk '/Has Encrypted Extents/ {print $4;exit}'` ENCRYPTION=`diskutil cs list $LV_FAMILY_UUID | awk '/Encryption Type/ {print $3;exit}'` SIZE=`diskutil cs list $LV_UUID | awk '/Size \\(Total\\)/ {print $5,$6;exit}'` # This section does 10.7-specific checking of the Mac's # FileVault 2 status if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -eq 7 ]]; then if [ "$CONTEXT" = "Present" ]; then if [ "$ENCRYPTION" = "AES-XTS" ]; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Status/ {print $3;exit}' >> $ENCRYPTSTATUS if grep -iE 'Complete' $ENCRYPTSTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Complete</result>" else if grep -iE 'Converting' $ENCRYPTSTATUS 1>/dev/null; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Direction/ {print $3;exit}' >> $ENCRYPTDIRECTION if grep -iE 'Forward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Encryption Proceeding. $CONVERTED of $SIZE Encrypted</result>" else echo "<result>FileVault 2 Encryption Status Unknown. Please check.</result>" fi fi fi else if [ "$ENCRYPTION" = "None" ]; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Direction/ {print $3;exit}' >> $ENCRYPTDIRECTION if grep -iE 'Backward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Proceeding. $CONVERTED of $SIZE Decrypted</result>" elif grep -iE '-none-' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Completed</result>" fi fi fi fi fi fi # This section does checking of the Mac's FileVault 2 status # on 10.8.x through 10.10.x if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -ge 8 ]] && [[ ${osvers_minor} -lt 11 ]]; then if [[ "$ENCRYPTIONEXTENTS" = "No" ]]; then echo "<result>FileVault 2 Encryption Not Enabled</result>" elif [[ "$ENCRYPTIONEXTENTS" = "Yes" ]]; then diskutil cs list $LV_FAMILY_UUID | awk '/Fully Secure/ {print $3;exit}' >> $ENCRYPTSTATUS if grep -iE 'Yes' $ENCRYPTSTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Complete</result>" else if grep -iE 'No' $ENCRYPTSTATUS 1>/dev/null; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Direction/ {print $3;exit}' >> $ENCRYPTDIRECTION if grep -iE 'forward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Encryption Proceeding. $CONVERTED of $SIZE Encrypted</result>" else if grep -iE 'backward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Proceeding. $CONVERTED of $SIZE Decrypted</result>" elif grep -iE '-none-' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Completed</result>" fi fi fi fi fi fi # This section does checking of the Mac's FileVault 2 status # on 10.11.x through 10.12.x if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -ge 11 ]] && [[ ${osvers_minor} -lt 13 ]]; then if [[ "$ENCRYPTION" = "None" ]] && [[ $(diskutil cs list "$LV_UUID" | awk '/Conversion Progress/ {print $3;exit}') == "" ]]; then echo "<result>FileVault 2 Encryption Not Enabled</result>" elif [[ "$ENCRYPTION" = "None" ]] && [[ $(diskutil cs list "$LV_UUID" | awk '/Conversion Progress/ {print $3;exit}') == "Complete" ]]; then echo "<result>FileVault 2 Decryption Completed</result>" elif [[ "$ENCRYPTION" = "AES-XTS" ]]; then diskutil cs list $LV_FAMILY_UUID | awk '/High Level Queries/ {print $4,$5;exit}' >> $ENCRYPTSTATUS if grep -iE 'Fully Secure' $ENCRYPTSTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Complete</result>" else if grep -iE 'Not Fully' $ENCRYPTSTATUS 1>/dev/null; then if [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $4;exit}') != "" ]]; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Status/ {print $4;exit}' >> $ENCRYPTDIRECTION if grep -iE 'forward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Encryption Proceeding. $CONVERTED of $SIZE Encrypted</result>" elif grep -iE 'backward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Proceeding. $CONVERTED of $SIZE Decrypted</result>" fi elif [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $4;exit}') == "" ]]; then if [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $3;exit}') == "Complete" ]]; then echo "<result>FileVault 2 Decryption Completed</result>" fi fi fi fi fi fi if [[ ${osvers_major} -eq 10 ]] && [[ ${osvers_minor} -ge 13 ]]; then # If the OS on the Mac is 10.13 or higher, check to see if the # boot drive is formatted with APFS or HFS+ boot_filesystem_check=$(/usr/sbin/diskutil info / | awk '/Type \\(Bundle\\)/ {print $3}') # If the drive is formatted with APFS, the fdesetup tool will # be available and is able to display the encryption status. if [[ "$boot_filesystem_check" = "apfs" ]]; then # If encrypted, the following message is # displayed without quotes: # "FileVault is On." # # If encrypting, the following message is # displayed without quotes: # "Encryption in progress:" # How much has been encrypted of of the total # amount of space is also displayed. # # If decrypting, the following message is # displayed without quotes: # "Decryption in progress:" # How much has been decrypted of of the total # amount of space is also displayed # # If not encrypted, the following message is # displayed without quotes: # "FileVault is Off." ENCRYPTSTATUS=$(fdesetup status | xargs) if [[ -z $(echo "$ENCRYPTSTATUS" | awk '/Encryption | Decryption/') ]]; then ENCRYPTSTATUS=$(fdesetup status | head -1) echo "<result>$ENCRYPTSTATUS</result>" else ENCRYPTSTATUS=$(fdesetup status | tail -1) echo "<result>$ENCRYPTSTATUS</result>" fi fi if [[ "$boot_filesystem_check" = "hfs" ]]; then diskutil cs info / >> $CORESTORAGESTATUS 2>&1 if grep -iE '/ is not a CoreStorage disk' $CORESTORAGESTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Not Enabled</result>" rm -f "$CORESTORAGESTATUS" exit 0 fi # If the Mac is running 10.7 or higher and the boot volume # is a CoreStorage volume, the script then checks to see if # the machine is encrypted, encrypting, or decrypting. # # If encrypted, the following message is # displayed without quotes: # "FileVault 2 Encryption Complete" # # If encrypting, the following message is # displayed without quotes: # "FileVault 2 Encryption Proceeding." # How much has been encrypted of of the total # amount of space is also displayed. If the # amount of encryption is for some reason not # known, the following message is # displayed without quotes: # "FileVault 2 Encryption Status Unknown. Please check." # # If decrypting, the following message is # displayed without quotes: # "FileVault 2 Decryption Proceeding" # How much has been decrypted of of the total # amount of space is also displayed # # If fully decrypted, the following message is # displayed without quotes: # "FileVault 2 Decryption Complete" # # Get the Logical Volume UUID (aka "UUID" in diskutil cs info) # for the boot drive's CoreStorage volume. LV_UUID=`diskutil cs info / | awk '/UUID/ {print $2;exit}'` # Get the Logical Volume Family UUID (aka "Parent LVF UUID" in diskutil cs info) # for the boot drive's CoreStorage volume. LV_FAMILY_UUID=`diskutil cs info / | awk '/Parent LVF UUID/ {print $4;exit}'` CONTEXT=`diskutil cs list $LV_FAMILY_UUID | awk '/Encryption Context/ {print $3;exit}'` CONVERTED=`diskutil cs list $LV_UUID | awk '/Conversion Progress/ {print $3;exit}'` ENCRYPTIONEXTENTS=`diskutil cs list $LV_FAMILY_UUID | awk '/Has Encrypted Extents/ {print $4;exit}'` ENCRYPTION=`diskutil cs list $LV_FAMILY_UUID | awk '/Encryption Type/ {print $3;exit}'` SIZE=`diskutil cs list $LV_UUID | awk '/Size \\(Total\\)/ {print $5,$6;exit}'` # This section does checking of the Mac's FileVault 2 status if the boot drive is formatted with HFS+ if [[ "$ENCRYPTION" = "None" ]] && [[ $(diskutil cs list "$LV_UUID" | awk '/Conversion Progress/ {print $3;exit}') == "" ]]; then echo "<result>FileVault 2 Encryption Not Enabled</result>" elif [[ "$ENCRYPTION" = "None" ]] && [[ $(diskutil cs list "$LV_UUID" | awk '/Conversion Progress/ {print $3;exit}') == "Complete" ]]; then echo "<result>FileVault 2 Decryption Completed</result>" elif [[ "$ENCRYPTION" = "AES-XTS" ]]; then diskutil cs list $LV_FAMILY_UUID | awk '/High Level Queries/ {print $4,$5;exit}' >> $ENCRYPTSTATUS if grep -iE 'Fully Secure' $ENCRYPTSTATUS 1>/dev/null; then echo "<result>FileVault 2 Encryption Complete</result>" else if grep -iE 'Not Fully' $ENCRYPTSTATUS 1>/dev/null; then if [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $4;exit}') != "" ]]; then diskutil cs list $LV_FAMILY_UUID | awk '/Conversion Status/ {print $4;exit}' >> $ENCRYPTDIRECTION if grep -iE 'forward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Encryption Proceeding. $CONVERTED of $SIZE Encrypted</result>" elif grep -iE 'backward' $ENCRYPTDIRECTION 1>/dev/null; then echo "<result>FileVault 2 Decryption Proceeding. $CONVERTED of $SIZE Decrypted</result>" fi elif [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $4;exit}') == "" ]]; then if [[ $(diskutil cs list "$LV_FAMILY_UUID" | awk '/Conversion Status/ {print $3;exit}') == "Complete" ]]; then echo "<result>FileVault 2 Decryption Completed</result>" fi fi fi fi else echo "<result>Unknown filesystem.</result>" fi fi fi # Remove the temp files created during the script if [ -f "$CORESTORAGESTATUS" ]; then rm -f "$CORESTORAGESTATUS" fi if [ -f "$ENCRYPTSTATUS" ]; then rm -f "$ENCRYPTSTATUS" fi if [ -f "$ENCRYPTDIRECTION" ]; then rm -f "$ENCRYPTDIRECTION" fi exit 0

    Then create a smart group like this:



    just modify β€ƒthe settings in the smart group like you want.


    Hey mickl089,

    thanks for your quick reply. I have seen this post myself, but 1. i cant confirm if its outdated and 2. This dosent check if a key present. As i already said some of my users have an invalid or unknown Filevault 2 Setup but still have a key, or even the other way round. They have no Key but the Disk is Encrypted. I guess it will boil down to manually searching for them.



    Thanks,

    Raffael

    S
    Forum|alt.badge.img+9
    • steve_summers
    • Valued Contributor
    • 123 replies
    • May 25, 2023

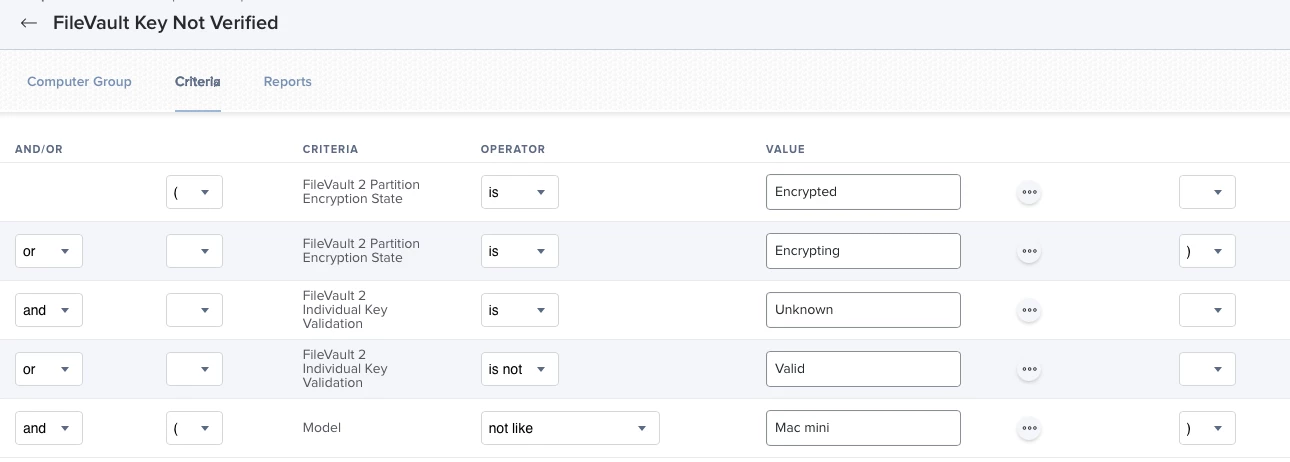

    @Raffael , I've attached an image of the smart group I use to find keys in my Org which are not valid. I can verify it works.  If you set it up like this, mind the parentheses.  I exclude Mac minis in our environment because they're desktops.  So, if you have iMacs or other desktops, you may want to exclude those.  Up to you.  Hope it helps.
