We deploy more than 600 iOS devices and are thinking of switching to DEP for easier distribution. However, during reviewing the DEP and issues that we currently have, we have stumbled upon an issue that we cannot solve and that is crucial if we want to switch to DEP. We have also opened up a bug report with Apple and are following up with them on this as well. I was just wondering if there are any schools that use DEP and have come across this issue, and how they solved it.
So, here it is:
Sometimes, users forget their passcode lock. With JSS, we can push out "Clear Passcode" command, that removes the clear passcode and requires the user to enter a new passcode, as set by our policy. However, if the user restarts the device, the entire device is encrypted along with the keychain, and the device does not connect to any Wi-Fi network, therefore it cannot receive the "Clear Passcode" command. With Apple Configurator, we could connect the locked device to Configurator, remove the MDM profile, and the device would unlock. However, this will be no longer possible with DEP. We have tried the Ethernet connectivity of the iPad and that works for now, but it is not an official way of doing it, and Apple may remove the possibility at any point in the future. The iOS device has to be able to connect to a Wi-Fi network so we can unlock it.
Steps to Reproduce:
1. Supervise an iOS device with Apple Configurator
2. Enroll the iOS device into a MDM
3. Set up passcode on the iOS device
4. Let's say the user of the device forgets the iOS passcode lock
5. Restart the iOS device and remember you don't know the passcode lock anymore
6. On MDM, push out a "Clear Passcode" command to the device
7. Because the device doesn't have Wi-Fi connectivity, the command will never reach the device
Expected Results:
After restarting the iOS device, it automatically connects to known Wi-Fi networks.
Actual Results:
After restarting the iOS device, it does not connect to any of Wi-Fi networks.
Thanks!
You may find with the other 10%, they have the wrong date and time.
How do things work if the iPad is passcode disabled? e.g. when they have locked it beyond the point of not being able to enter a passcode.
In my deployment (+/-700 devices, 7th and 8th grade), this surprisingly hasn't been much of an issue. One thing I would to chime regarding is the Ethernet/Camera Adapter/Powered Hub - it's certainly not supported and in my experience, it has been hit or miss with around a 50% success rate.
I don't see Apple 'fixing' this, it's a security feature, not a bug.
Security feature that prevents us from doing our jobs properly? :)
I can understand why it's locked following a restart, but perhaps there should be an MDM option to include a remote management wireless profile that's always available? If not, even a "join wireless" option on the lock screen itself where you could supply one-time wireless credentials
Or a master unlock code generated for each device when enrolled.
All ideas should be fed to Apple as either a radar against the MDM Framework (iOS Enhancement) or at apple.com/feedback!! :)

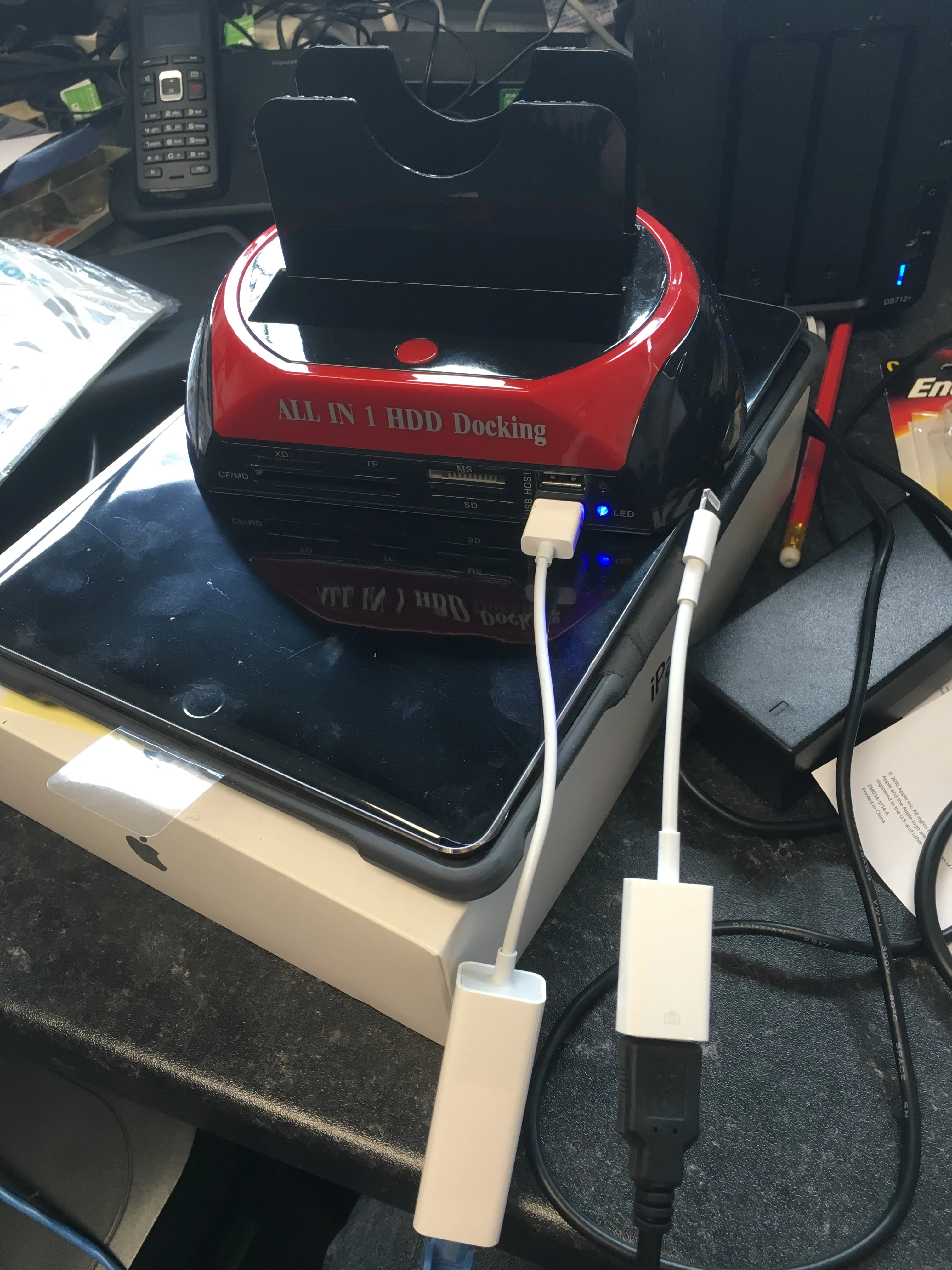

Hmm the pictured method does actually connect it to ethernet, ethen though it says its unsupported.
I found swiping up to activate the camera, seems to assist with the connection, as it would immediately prompt for proxy credentials.
I guess this will do for now, but cause it is not a approved method, to rely on it, is a bit dicey, but it will do for now.
I posted this to another thread, but that thread is linking here, so I thought I'd try this:
Has anyone been able to get the this to work with the new Lightning to USB 3 Camera adapter (powered by iPad power adapter) plus a USB to Ethernet adapter? I can get online with an iPad that is already unlocked, but when I try to get online with an iPad that's been disabled (but showing passcode unlock screen) it won't connect.
How are you verifying you're not online when at the passcode screen? Because this is a wired connection, the Wi-Fi icon won't appear at the top of the screen.
Test sending an unlock command from your JSS to the device. Verify it unlocks by swiping from left to right as if you're about to enter the passcode.
Hi @talkingmoose I did your exact method to test the connection and it was a no go. I was able to verify the connection on an unlocked iPad with wifi turned off, but it seems that the locked iPad has all internet connections disabled.
Hi @timvenchus. We too are having the exact same issue with an iPad running 9.3.1 that is locked with the user unable to remember his passcode. We got the new Lightning to USB 3 Camera adapter and the USB to Ethernet adapter to attempt to get the iPad to connect to the JSS so we could send the "Clear Passcode" command, but it is not working for us either. I can confirm from our DHCP server that the iPad does get an IP address over the Ethernet connection and I can ping the iPad from the server, but for some reason the iPad never seems to talk to the JSS. I'm not sure if the JSS is just not "looking" for this iPad on that IP or if the APN servers don't "recognize" that this iPad is on a different IP.
If anyone has any further tips or tricks to try, please let us know. We are trying to avoid wiping the device if necessary because the student did not have everything backed up and there are finals coming up soon. (Granted, he can't use anything on it right now since it is locked, so maybe this is just a learning lesson for him.) Any and all help is appreciated. Thanks.
Weird, it's working perfectly fine for us in those scenarios. We can restart the iPad, and when it comes back and it's locked with no Wi-Fi, connecting it to the ethernet will get it solved in seconds.
@St0rMl0rD Are you using the new Apple Lightning to USB 3 adapter and Apple USB to Ethernet adapter (with power from iPad power adapter), or a different setup e.g. with a powered USB hub? Unfortunately I don't have a powered USB hub hand to test out alternate setups.
@timvenchus, I did some testing here with the USB 3 adapter and found something that may help you.
I'm using the same pieces for the rig found here on Lifehacker.com:
USB 3 Camera adapter and Ethernet rig
At first, my iOS device kept receiving a message that I wasn't supplying enough power for the USB Ethernet adapter. After some trial and error, I determined my power supply (far right in the picture) was the problem. It said "iPod USB Power Adapter" (model A1205) and made no mention of wattage. (After some research online I found it's 5W.)
I found a second adapter that specifically said 10W USB Power Adapter (model A1357). The USB symbol on the cable itself also plugged in upside down compared to the first adapter, so I could tell they were different somehow.
This second adapter worked.
Aaaaaand now that I read further down the thread (maybe I should that before posting things), I see your issue isn't with the device receiving an IP address. Never mind.
@timvenchus we have a powered usb hub set up with all the necessary cables at all times, so if I get an iPad like that, I only look it up in JSS, send clear passcode command and connect it, and voila.
Tried this today on a device and it failed, so i did a bit of testing and think i may have found the issue.
It looks like the MDM root certificate had expired on the device, i checked some more students in his class and they were on and old expired certificate as well.
After getting the student permission to wipe the device, i preceded to inroll the device again and then permanently disable it again with incorrect pin code attempts.
After connecting the iPad via the lighting to usb, usb hub and a usb to ethernet contraption, it work instantly.
does DFU mode can remove MDM mode on iphone and ipad ?
Yes, but the device would simply re-enroll at activation if it's in DEP and assigned to a pre-stage enrollment.
Anyone else seeing that this no longer works in iOS 10.3? I can still get an IP address with my Apple USB Ethernet adapter, but after reboot I can't run any MDM commands until the passcode is entered.
Yes what I'm seeing is that I Can't clear any PassCode's any more on device's with 10.3.1 using a wired connection. Testing on my test device if device is Passcode lock no MDM commands are working, If I unlock the device commands do work. This is going to be a Problem clearing Passcode on devices we need to access.
Just found this also
[http://www.enterpriseios.com/story/2017/04/07/Push_notifications_to_iOS_require_WiFi_link_when_Ethernet_used
](link URL)
There appears to be a bug in iOS (10.3.1) with push notifications and Ethernet. We use the Apple Lightning to USB 3 Camera Adapter and a USB Ethernet adapter to provide network to devices in the field. During a troublesome deployment we discovered that the Apple Push Notification Service (APNS) does not establish a connection if the WiFi radio is off or not joined to a known network. That WiFi network does not need to have valid internet, or even DHCP available, the device will choose a self assigned IP and then the APNS connection will use the Ethernet adapter.
I imagine this has something to do with how APNS behaves when both Cellular and WiFi are available. I'm curious if Apple TV has a similar bug, I imagine not, given the fact the Ethernet is built in and likely a more common scenario. Although a seldom used feature, the Lightning to USB to Ethernet configuration was feature in a past keynote (https://sixcolors.com/post/2016/03/apples-lightning-to-usb-3-adapter-bri...).
MDM commands are triggered by APNS messages which means MDM is not functional in an Ethernet only environment.
It was a tricky one to discover, requiring packet captures, and other network analysis to isolate, I hope this helps someone else in the future.
Radar:
http://www.openradar.me/31494325
Was able to connect locked iPad to MacBook through USB and share MacBook's internet connection. Allowed me to get my 10.3.1 iPad unlocked. Thanks to @Emmert suggestion in https://www.jamf.com/jamf-nation/discussions/23801/rj45-adaptor-for-ipads
so @kuypers does that mean that 10.3.1 and above devices dont work or is there a work around?
As I found the same result as you did, I knew the ipad was communication over ethernet, as it could be pinged, but it wouldn't respond to MDM commands.
