Programmatic macOS updates for Apple Silicon

(Please pardon the piecemeal post; I'm presuming partial information is better than nothing.)

scheduleOSUpdate via the Jamf Pro API

Thanks to AppleCare pointing out that:

When running the softwareupdate command in a root shell on Apple Silicon users are being prompted for a password.
This is expected behavior and the recommendation is to use the Schedule an OS Update command via MDM. This is the method to use if you want to update Apple Silicon Macs without requiring user credentials.

In other words:

if [[ "$arch" == "arm64" ]]; then

    scheduleOSUpdateViaAPI

else

    /usr/sbin/softwareupdate --install --all --include-config-data --restart --force

fi

In my limited testing, users are still prompted:

Pending Feature Requests

@psliequ's Support the entire range ScheduleOSUpdate MDM commands for macOS

Snippets

####################################################################################################

#

# Variables

#

####################################################################################################



jamfProURL="https://company.jamfcloud.com" # No trailing forward slash

apiUsername="${5}"

apiPasswordEncrypted="${6}"

computerSerialNumber=$( /usr/sbin/system_profiler SPHardwareDataType | /usr/bin/grep Serial | /usr/bin/awk '{print $NF}' )

arch=$( /usr/bin/arch )







####################################################################################################

#

# Functions

#

####################################################################################################



# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

# xpath tool changes in Big Sur

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #



function xpath() {



    # https://scriptingosx.com/2020/10/dealing-with-xpath-changes-in-big-sur/

    # Thanks, Armin!

    if [[ $(sw_vers -buildVersion) > "20A" ]]; then

        /usr/bin/xpath -e "$@"

    else

        /usr/bin/xpath "$@"

    fi



}







# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

# Decrypt Password

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #



function decryptPassword() {

    /bin/echo "${1}" | /usr/bin/openssl enc -aes256 -d -a -A -S "${2}" -k "${3}"

}







# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

# Schedule OS Update via the API

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #



function scheduleOSUpdateViaAPI() {



    echo "Schedule OS Update via the API …"



    apiPassword=$( decryptPassword ${apiPasswordEncrypted} ${Salt} ${Passphrase} )

    jamfProCompID=$( /usr/bin/curl -s -u ${apiUsername}:${apiPassword} ${jamfProURL}/JSSResource/computers/serialnumber/${computerSerialNumber}/subset/general | xpath "/computer/general/id/text()" )



    # /usr/bin/curl -s -X POST -H "Content-Type: text/xml" -u ${apiUsername}:${apiPassword} ${jamfProURL}/JSSResource/computercommands/command/ScheduleOSUpdate/action/InstallForceRestart/id/${jamfProCompID}



    /usr/bin/curl -s -X POST -H "Content-Type: text/xml" -u ${apiUsername}:${apiPassword} ${jamfProURL}/JSSResource/computercommands/command/ScheduleOSUpdate/action/Default/id/${jamfProCompID}



}









####################################################################################################

#

# Program

#

####################################################################################################





# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

# Force Software Update Snippet only

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #



if f  "$arch" == "arm64" ]]; then

    scheduleOSUpdateViaAPI

else

    /usr/sbin/softwareupdate --install --all --include-config-data --restart --force

fi

Page 1 / 3

Hi!

tested this, and ran into some issues!

Did you ever get an error like below:

line 57: ScriptLog: command not found

error reading input file



mismatched tag at line 10, column 2, byte 404:

<p>You can get technical details <a href="http://www.w3.org/Protocols/rfc2616/rfc2616-sec10.html#sec10.4.2">here</a>.<br>

    Please continue your visit at our <a href="/">home page</a>.

</p>

=^

</body>

</html>

 at /System/Library/Perl/Extras/5.30/darwin-thread-multi-2level/XML/Parser.pm line 187.

<html>

<head>

    <title>Status page</title>

</head>

<body style="font-family: sans-serif;">

<p style="font-size: 1.2em;font-weight: bold;margin: 1em 0px;">Unauthorized</p>

<p>The request requires user authentication</p>

<p>You can get technical details <a href="http://www.w3.org/Protocols/rfc2616/rfc2616-sec10.html#sec10.4.2">here</a>.<br>

    Please continue your visit at our <a href="/">home page</a>.

</p>

</body>

</html>

@dan-snelson same error as well

The issue is with the xpath -e. If you try this manually it still give the error hmmm....

Sorry for the delay, @fredrik.virding and @tkimpton; I replaced ScriptLog (an internal function) with echo.

Hi @dan-snelson
ill try the updated version and get back to you! Thanks for replying.

Hi @dan-snelson

Still seeing similar issue. Perhaps after the Jamf 10.29 update, it might perform better?

An update on this. Not too much difference. Anyone made any progress so far?

@dan-snelson , thank you for giving your time, talents, energy, etc... to solve this problem. Great script.

It will certainly be useful until Apple realizes what a pain this is and gives us something even more ... enterprise-y.

Indeed, thanks @dan-snelson

Anyone still seeing this in 11.4 and Jamf 10.29?

#!/bin/sh

Script result: Schedule OS Update via the API …

error reading input file



mismatched tag at line 10, column 2, byte 404:

<p>You can get technical details <a href="http://www.w3.org/Protocols/rfc2616/rfc2616-sec10.html#sec10.4.2">here</a>.<br>

    Please continue your visit at our <a href="/">home page</a>.

</p>

=^

</body>

</html>

 at /System/Library/Perl/Extras/5.30/darwin-thread-multi-2level/XML/Parser.pm line 187.

<html>

<head>

   <title>Status page</title>

</head>

<body style="font-family: sans-serif;">

<p style="font-size: 1.2em;font-weight: bold;margin: 1em 0px;">Not Found</p>

<p>The server has not found anything matching the request URI</p>

<p>You can get technical details <a href="http://www.w3.org/Protocols/rfc2616/rfc2616-sec10.html#sec10.4.5">here</a>.<br>

Please continue your visit at our <a href="/">home page</a>.

</p>

</body>

</html>

I am not getting that I get a http response 201 but the mac does not update :(

I have rewritten that script into python3 as that is what i use to manage our mac fleet.

from the /var/log/install.log it looks like it is trying to install the update tho but ether not downloading it or not force restarting it to do the update.

2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: SUOSUShimController: Notification manager client, proceeding with countdown notification flow without confirmation
2021-06-03 09:54:20+08 Name softwareupdated[267]: No matching products found while calculating disk space required
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: SUAppStoreUpdateController: disk space required for updates is: 0 ()
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: <SUOSUProduct: MSU_UPDATE_20F71_patch_11.4> is already prepared, just require installationSize. Initial space req: 0, MSU space req: 4797581312
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: Disk already has enough free space for updates (required: 950009856, available: 449098330112)
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: Starting free space request (required: 950009856, available: 449098330112)
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: Done requesting free space from StorageManagement
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: SUOSUShimController: Start downloading updates: (
"MSU_UPDATE_20F71_patch_11.4"
)
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: Sending authorization to notification service
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: SUAppStoreUpdateController: authorize
2021-06-03 09:54:20+08 Name system_installd[1137]: PackageKit: Adding client PKInstallDaemonClient pid=267, uid=200 (/System/Library/CoreServices/Software Update.app/Contents/Resources/softwareupdated)
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: SUOSUNotificationManagerController: Added progress & completion handlers to SUMN
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: SUOSUAuthenticationManager: Disabling local authentication requirement
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: Waiting for available updates to be initially populated
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: Done waiting for available updates to be initially populated
2021-06-03 09:54:20+08 Name softwareupdated[267]: SUOSUMobileSoftwareUpdateController: Download finished: (null)
2021-06-03 09:54:20+08 Name softwareupdated[267]: No matching products found while calculating disk space required
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: SUOSUShimController: SUCCESS starting download notification service
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: SUOSUNotificationManagerController: Restart countdown download complete; clearing progress and completion handlers
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: SUOSUNotificationManagerController: Invoke restart countdown download finished
2021-06-03 09:54:20+08 Name SoftwareUpdateNotificationManager[1126]: SUOSUNotificationManagerController: Restart countdown download complete; clearing progress and completion handlers
2021-06-03 09:54:54+08 Name softwareupdated[267]: SUOSUServiceDaemon: Connection invalidated!
2021-06-03 09:54:54+08 Name softwareupdated[267]: Removing client SUUpdateServiceClient pid=2975, uid=0, installAuth=NO rights=(), transactions=0 (/usr/libexec/mdmclient)

Might need some help from jamf to sort this one out...

Findings only the install command works and it will only work with a user is login.

It will take about 10 - 20min to get it to kick off/reboot.

Not going to work for patching labs :(

In my own testing, the "Install" action results in the same error in Jamf that Lincolnep is experiencing, this is on both Apple Silicone and Intel Macs. I also get the error regardless if a user is logged in or not.

so this works, tested on Big Sur M1 machines

https://{{url}}/JSSResource/computercommands/command/ScheduleOSUpdate/action/install/id/:id

and while the command respects comma seperated values, anyone know how to get the information from an array to then do a one liner with commas using bash?

example: https://{{url}}/JSSResource/computercommands/command/ScheduleOSUpdate/action/install/id/9,100,92,1,500

Doesn't work for me.

What I am seeing here from what you posted :

https://{{url}}/JSSResource/computercommands/command/ScheduleOSUpdate/action/install/id/:id

is a : before the id. If I add that colon i get:

<p>Unable to match computer </p>

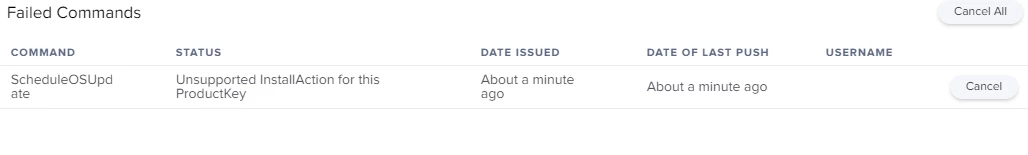

Issuing the command leaving the colon out yields, Unsupported InstallAction for this ProductKey, whether I use default, install, or InstallForceRestart.

Doesn't work for me.

What I am seeing here from what you posted :

https://{{url}}/JSSResource/computercommands/command/ScheduleOSUpdate/action/install/id/:id

is a : before the id. If I add that colon i get:

<p>Unable to match computer </p>

Issuing the command leaving the colon out yields, Unsupported InstallAction for this ProductKey, whether I use default, install, or InstallForceRestart.

@jwaltonen

so the qualifiers include but not limited to:

1. big sur

2. managed

I have a smart group that i query and get their computer IDs for

then i run that command.

In my case, all those are true when I run the command

https://{{url}}/JSSResource/computercommands/command/ScheduleOSUpdate/action/install/id/136,332

Note: I am using classic API, run via Postman, and my instance is hosted, FWIW

I didn't think bootstrap token escrow was a prerequisite for this to work but I got it to work on a machine that had bootstrap token escrowed. My failures were on otherwise equal 11.4 machines that didn't have bootstrap escrowed.

interesting note, the API command and the OS update MDM remote command from the web interface both seem to take almost exactly 30 minutes to restart the computer and apply the update, even if the 11.6 update is already downloaded. Not perfect, but i'll take over what I had yesterday. Which was nothing.

@jwaltonen Did you have to be login to the Mac for the update to work?

you dont, the api command runs and it kicks off regardless if they are logged in or not, at least from my testing.

they have to be online though, but otherwise it should be good.

no. after the 10.32 upgrade it works at the login window. Just takes 30 minutes to occur after issuing the commands.

@beeboo @jwaltonen Just curious as to why the api command is working for you and failing for us. In our case (student 11.5.2/M1 lab stations) we suppress auto software updates via config profile, I wonder if this may be getting in the way of the mdm command?

I assume you JSS is at 10.32 or better.

This is the command I use, again only tried on intel. But it works for sure.

/usr/bin/curl -s -X POST -H "Content-Type: text/xml" --header 'authorization: Basic '$creds'' ${jamfProURL}/JSSResource/computercommands/command/ScheduleOSUpdate/action/install/id/${jamfProCompID}

You probably need to have the bootstrap token escrowed on m1 to bypass the user prompt.

I assume you JSS is at 10.32 or better.

This is the command I use, again only tried on intel. But it works for sure.

/usr/bin/curl -s -X POST -H "Content-Type: text/xml" --header 'authorization: Basic '$creds'' ${jamfProURL}/JSSResource/computercommands/command/ScheduleOSUpdate/action/install/id/${jamfProCompID}

You probably need to have the bootstrap token escrowed on m1 to bypass the user prompt.

@jwaltonen Yep, we're on 10.32.2 cloud, bootstrap token is escrowed, using the same api command as you.

I'm fairly certain our api user prefs are correct, and besides 'install' I've also tried actions: InstallASAP & InstallForceRestart. It's really driving me crazy!

I should also mention it's failing for me on Intel as well.

do you have the config profile set to no auto update/check/download etc, and also with a X days deferral?

We have just recently set the deferral so indeed that might be the issue.

redacting specific info, what is the exact url you are using? is it the same as the one i posted with your instanced replaced?

you ensuring is https?

what, if any, is the error you get?

When i run it in postman, for example, i get an xml output of computer info as a form of confirmation.

If it fails, i get a failure message.

Any other info from url to output that you can share would help.
